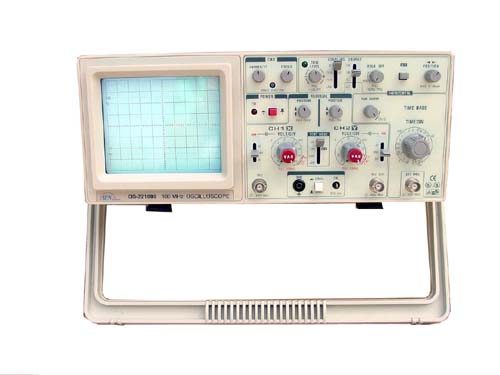

| Oscilloscope (100 MHz): OS-221000 |
Features
Dual Trace,
Dual Trigger
2nS Resolution
Hold-Off
X-Y Operation
CRT
| Type: | 6" diagonal, rectangular screen with integral graticule |
| Display Area: | 8 x 10 div (1 div = 1 cm) |
| Accelerating Voltage: | 14 kV |
| Phosphor: | P31 |
Vertical Deflection
| Bandwidth | DC-100MHz (-3db) |
| Sensitivity: |
1 mV/div to 1 V/div (x 5 mode) 5 mV/ div to 5V/ div (x 1 mode) |
| Attenuator | 1-2-5 sequence, 10 step with variable control |
| Input Capacitance | 25 pF+ 10pF |
| Input Impedance | 1MW + 2% |
| Max. Input Voltage | 400V (DC + AC peak) |
| Rise Time: | 5 mV/div - 5V/div: 3.5 nS |
| 1 mV/div: 14nS | |
| Operation Mode | CH1, CH2, ALT, CHOP, ADD |
| Max. Undistorted Amplitude |
DC-120 MHz: 4 divisions DC-60MHz: 8 divisions |
| Inverter (Polarity Reversal) | CH2 only |
Horizontal Deflection
| X-Y Mode: | Switch selectable using X-Y switch, |
| CH1: X axis, CH2: Y axis | |
| Accuracy: | Y-Axis: |
