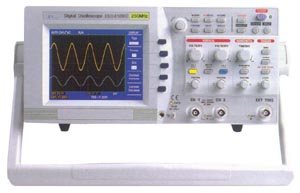

| Digital Oscilloscope (150 MHz): DSO-51150C |
| Specifications: | |||||
| General features: | 150MHz Repeatitive Bandwidth, 2CH Dual Digitizer | ||||
| 100MS/s Simultaneous Maximum Sampling Rate per channel | |||||
| 200MS/s Sampling Rate for one channel only | |||||
| 25GS/s Equivalent Sampling Rate per channel | |||||
| High Speed Screen Update using 16bit u-Processor | |||||
| 10ns Peak Detection for Glitch Capture | |||||
| Convenient Functions: | Long Memory Max. 32KBytes/CH for flexible Waveform Zoom In/Out | ||||
| Direct Single Trigger Capture Function using a hot-key | |||||
| Simultaneous 5 Waveform informations | |||||
| Auto Measurement and FFT Analysis | |||||
| Auto Trigger Level Setting to 50% | |||||
| Saving 10 Waveforms & setup parameters | |||||
| Convenient inserting interface card for RS-232C, Hardcopy and USB | |||||
| Hold-off function | |||||
| Fast Trigger ON/OFF | |||||
| Acquisition: | Max Sample Rate: | 200 MSPS for one channel only, 100 MSPS /CH (real time) | |||
| Record Length: | Long Memory Max. 32kBytes/CH, Wide Waveform Zoom In/Out | ||||
| Peak Defect: | Capture & displays event as narrow as 10ns GLITCH | ||||
| Vertical: | Frequency Bandwidth: | DC ~ 150 MHz | |||
| Input Channel: | CH1, CH2 | ||||
| Volt/ Div | 2mV/Div ~ 5V/Div | ||||
| Input Impedence: | 1 Mohm // Approx. 20 pF | ||||
| Max. Input Voltage: | 300V (DC + AC Peak) (AC<1KHz) | ||||
| Accuracy: | 3% | ||||
| Input Coupling: | DC, AC, GND | ||||
| Rising Time: | Approx. 2.3 ns | ||||
| Math: | Arithematic: ADD, SUBSTRACT, INV | ||||
| FFT: Hamming, Hanning and Rectangular Window | |||||
| Horizintal: | TIME/ DIV: | Equivalent 2ns/div ~ 0.1u | |||
