| Digital Storage Oscilloscope :DSO-55xxxC Series |
|
Model
|
DSO-55025C
|
DSO-55040C
|
DSO-55060C
|
DSO-55061C
|
DSO-55100C
|
DSO-55150C
|
DSO-55200C
|
|
Bandwidth
|
25M
|
40M
|
60M
|
60M
|
100M
|
150M
|
200M
|
|
Channels
|
Dual
| ||||||
|
Sample Rate(Real-time)
|
500MSa/s
|
1GSa/s
| |||||
|
Equivalent Sample Rate
|
50GSa/s
| ||||||
|
Record Length
|
4k points on each channel
| ||||||
|
Input impedance
|
1MΩ±2%,
15PF±3PF
| ||||||
|
Max. input voltage
|
All inputs 400Vrms Max
CATI
| ||||||
|
Rise time
|
14ns
|
8.7ns
|
5.8ns
|
5.8ns
|
3.5ns
|
2.3ns
|
1.8ns
|
|
Horizontal scale (s/div)
|
20ns-50s/div
|
5ns-50s/div
|
2ns-50s/div
|
1ns-50s/div
| |||
|
Horizontal Mode
|
Y-T,X-Y
| ||||||
|
Vertical sensitivity
|
2mV-5V/div
| ||||||
|
Vertical resolution (A/D)
|
8bit
| ||||||
|
Input coupling
|
DC,AC,GND
| ||||||
|
Trigger source
|
CH1,CH2,EXT,EXT/5,ACLine
| ||||||
|
Trigger Mode
|
Auto,
| ||||||
|
Trigger type
|
Edge(Rising edge, trailing edge), Pulse (<,=,>) ,Video(NTSC,PAL,SECAM)
| ||||||
|
Trigger
Coupling
|
DC, AC, high frequency restraint, low frequency
restraint
| ||||||
|
Bandwidth Limit
|
/
|
20M
| |||||
|
Wave From Interpolation
|
Sin(x)/x, Linearity
| ||||||
|
Cursor Measure
|
Hand movement, auto,
trace
| ||||||
|
Voltage Measure
|
Vpp, Vmax, Vmin, Vavg, Vamp, Vtop, Vbase, Vover,
Vpre
| ||||||
|
Time Measure
|
Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty,
Delay A, Delay B
| ||||||
|
Waveform math
|
+,-, x, ÷, FFT,
Opposition
| ||||||
|
FFT Windows Function
|
Hanning, Hamming, Blackman, Rectangular 1024point
| ||||||
|
Digital Filtering
|
High-pass, Low-pass, Band elimination,
Band-pass
| ||||||
|
Acquisition Mode
|
Normal, Peak Detect, Average,
Simulation
| ||||||
|
Display Type
|
Point, Vector
| ||||||
|
Menu Holding
|
2,5,10,20,Infinity
| ||||||
|
Interior Memory
|
10 groups test wave form,1 group reference wave form, 10
groups setting
| ||||||
|
External Memory
|
BMP storage, CSV file storage, wave form data
storage
| ||||||
|
Wave form Transcribe
|
Max. 1000 frame wave form
| ||||||
|
Menu Language
|
Simplified Chinese, Traditional
Chinese,English,Japanese,Korean,Russian,German,French,Italian,Polish
| ||||||
|
Display Mode
|
Normal, opposition
| ||||||
|
Hardware Frequency calculate
|
Internal setting
| ||||||
|
Communication
interface
|
USB Host, USB
Device,RS-232(optional)
| ||||||
|
Display Screen
|
5.7 inch color TFT-LCD
(320x240)
| ||||||
|
Power Supply
|
Voltage:100—240V/AC, Frequency: 45—65Hz,
Consumption:<30VA
| ||||||
|
Size
|
120×285×158
| ||||||
|
Weight
|
3kg
| ||||||
|
Accessories
|
two probes1X,10X), power cable, Manual, Guarantee | ||||||
 |
 |
 |
| Auto-test function 20 auto-test waveform parameters |
PASS/FAIL function Sets the qualified signal scope The signal fails when it is out of range. Improves test efficiency |
X-Y Pattern Using X-Y display pattern to analyze the phase relationship of two signals |
 |
 |
 |
| Waveform REC function Record and playback dynamic waveforrms. Adjustable frame-frame time interval. The maximum length is 1000 frames |
Cursor measure function Using the cursor function measure the waveform |
Trace type The cursor will track the waveform automatically, by rotating the vertical cursor knob to adjust horizontal position and change the vertical position automatically |
 |
 |
 |
| Delayed scan function Using dual time base system Easy-zoom window extension technology, partial wave expansion for optimal readings |
High refresh rate highlights the change process of the waveform |
Math Function FFT display Mathematic functions including +, -, x, ÷ and invert the MATH |
 |
 |
 |
| Video Trigger and delayed scan Meets different TV system(PAL NTSC.SECAM). Display defined Line signal via video trigger. |
Pulse width trigger function Six pulse width trigger condition, which scope is the 20 ns-1.5s, meet any abnormal conditions to capture the pulse |
Real clock display real time clock display (Upper left corner of the screen) |
 |

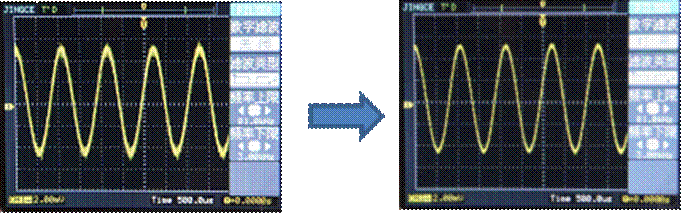

| Digital filter closed Digital
filter opened Digital Filter Function With the low pass filter,high pass filter, band pass filter, band resisting filter |
