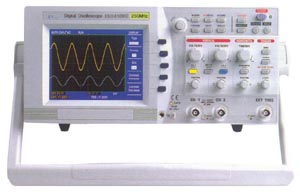

Digital Oscilloscope (250 MHz): DSO-51250/ DSO-51250C $2,145.00/ $2,325.00   Specifications:   General features: 250MHz Repeatitive Bandwidth, 2CH Dual Digitizer   100MS/s Simultaneous Maximum Sampling Rate per channel   200MS/s Sampling Rate for one channel only   25GS/s Equivalent Sampling Rate per channel   High Speed Screen Update using 16bit u-Processor   10ns Peak Detection for Glitch Capture   Convenient Functions: Long Memory Max. 32KBytes/CH for flexible Waveform Zoom In/Out   Direct Single Trigger Capture Function using a hot-key   Simultaneous 5 Waveform informations   Auto Measurement and FFT Analysis   Auto Trigger Level Setting to 50%   Saving 10 Waveforms & setup parameters   Convenient inserting interface card for RS-232C, Hardcopy and USB   Hold-off function   Fast Trigger ON/OFF   Acquisition: Max Sample Rate: 200 MSPS for one channel only, 100 MSPS /CH (real time) Record Length: Long Memory Max. 32kBytes/CH, Wide Waveform Zoom In/Out Peak Defect: Capture & displays event as narrow as 10ns GLITCH Vertical: Frequency Bandwidth: DC ~ 250 MHz Input Channel: CH1, CH2 Volt/ Div 2mV/Div ~ 5V/Div Input Impedence: 1 Mohm // Approx. 20 pF Max. Input Voltage: 300V (DC + AC Peak) (AC<1KHz) Accuracy: 3% Input Coupling: DC, AC, GND Rising Time: Approx. 1.4 ns Math: Arithematic: ADD, SUBSTRACT, INV FFT: Hamming, Hanning and Rectangular Window Horizintal: TIME/ DIV: Equivalent 2ns/div ~ 0.1u
