Digital Insulation Tester: DIT-13550/ DIT-13551


DIT-13550	DIT-13551

Model	Rated Voltage / Resistance	AC VOLTAGE	Ohms
DIT-13550	250V-20 MW / 200 MW /2000 MW 5000V-20 MW / 200 MW /2000 MW 1000V-20 MW/ 200 MW /2000 MW	750V	200 W BUZZ
DIT-13551	250V-20MW / 200MW /2000MW 5000V-20MW / 200MW /2000MW 1000V-20MW / 200MW /2000MW	750V	20 W 200 W 2 KW BUZZ

FEATURES

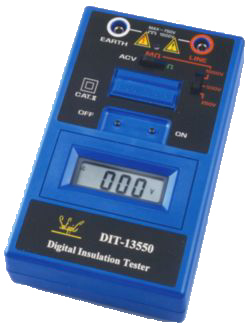

The DIT-13551 (DIT-13550) is a LCD indicated instrument for testing insulation (MW) continuity (W) and AC Voltage.

Instant operation is possible with a pushbutton. In addition, for continuous measurement of MW or W ,a convenient timer is provided with automatic power off after three to five minutes to save the battery power.

LED (red) indication when testing insulation and continuity.

Use of a high efficiency and accurate DC-DC converter.

Heavy case

Most suitable for insulation resistance measurement of electrical household appliances, power line distribution and installation.

SPECIFICATIONS
Display:field effect 3-1/2 digit liquid crystal display with maximum reading of 1999.

Megohm:
20MW
