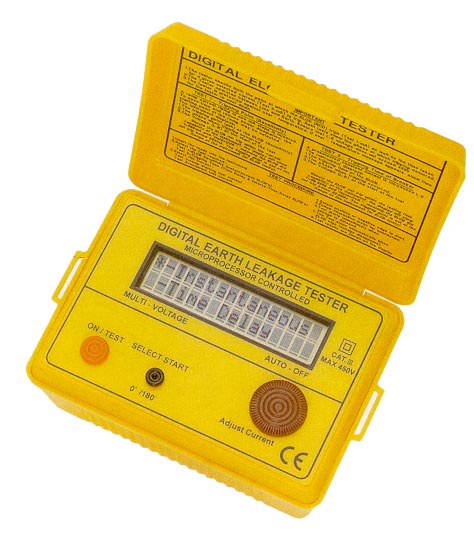

DEL-13820: Digital ELCB (RCD) Tester |
Features:
* Operating voltage: 100 ~ 450 V L-E
* Rated current 0 ~ 1000 mA.
* Checks ELCB trip time and trip point (sensitivity).
* Auto-Off / Auto-Ranging.
* Phase angle selection. (0 ~ 180 degrees)
* Indicates tripping phase angle.
* Impact resistant enclosure.
Specifications:
Trip Current: | - Range | : 0 ~ 1 A at 317 V (Auto-Range Programmable) |
- Resolution | : 1 ma | |
Operating Voltage (L-E): | : 100 ~ 450 V | |
Phase angle setting: | : 0 ~ 180 degrees | |
Timer: | - Max. | : 100 s |
- Resolution | : 1 ms | |
Power Source: | : 8 x AA Batteries | |
Accuracy: | Trip - current | + 0.1 % of rdg + 1 ma |
Trip - time | + 0.1 % of rdg + 1 dgt | |
Voltage: | : + 2 % of rdg + 1 dgt | |
Operating: | - Temperature | : - 10 ~ + 40 degrees C |
- Humidity | : 80 % max relative humidity | |
Dimensions: | 120 (L) x 170 (W) x 95 (D) mm | |
Weight: | 625 g |
