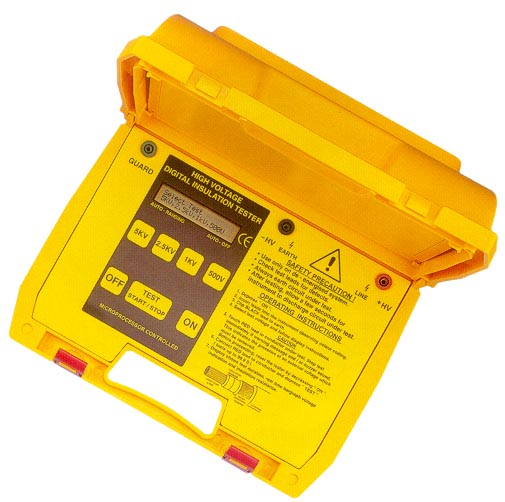

Digital Insulation Tester: DIT-13210



FEATURES :

*Four insulation test voltages.

*Insulation resistance, autorange on all ranges.

*Bargraph indicates test voltage, delay can be observed during discharge.

*Measures insulation discharge test time.

*Display warning of external voltage.

*Fully protected crow bar.

*Heavy duty carry case.

SPECIFICATIONS:

Insulation Voltage: 500/1000/2500/5000 V

Insulation Range: 25/50/125/250 GW ( Auto-Ranging)

Operating Temp.(degree C): 0 ~ 40

Power Source: 6x 1.5V 'C' Alkaline Batteries

Humidity: 85 %

Accuracy: Insulation Resistance: + 5% of rdg + 1dgt

Dimensions: 330(L) x 260(W) x 160(D) mm

Weight: 3500 g

Accessories: Test Leads, Instruction Manual, Alkaline Batteries.
