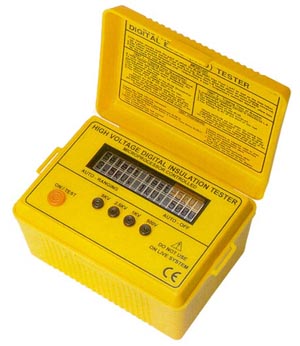

Digital Insulation Tester: DIT-13803 (5KV/ 25 G Ohm)



FEATURES :

*Real-time Bar-graph display of test voltage and voltage decay during discharge.

*Audible and visual message displayed if external voltage is present.

*Four DC test voltages (kV) 0.5/1/2.5/5

* Auto-ranging/ auto-off

*EPROM calibration

*IEC 1010 CAT III

SPECIFICATIONS:

Insulation Voltage: 0.5/1/2.5/5 kV

Insulation Range: 30/60/125/250 GW ( Auto-Ranging)

Operating Temp.: 0 ~ 40
