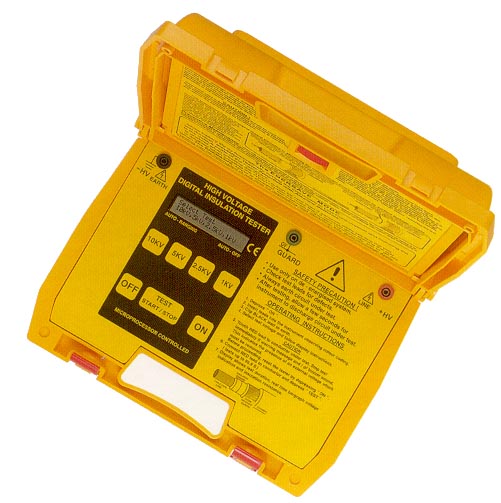

Digital Insulation Tester: DIT-13211



FEATURES :

*Four insulation test voltages.

*Insulation resistance, autorange on all ranges.

*Bargraph indicates test voltage, delay can be observed during discharge.

*Measures insulation discharge test time.

*Display warning of external voltage.

*Fully protected crow bar.

*Heavy duty carry case

*EEPROM calibration

*IEC 1010 CAT III

SPECIFICATIONS:

Insulation Voltage: 1/2.5/5/10 kV

Insulation Range: 50/125/250/500 GW (Auto-Ranging)

Operating Temp.(degree C): 0 ~ 40

Power Source: 6x 1.5V 'C' Alkaline Batteries

Humidity: 85 %

Accuracy: Insulation Resistance: + 5% of rdg + 1dgt

Dimensions: 330(L) x 260(W) x 150(D) mm

Weight: 3600 g
