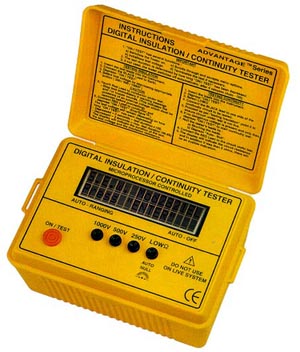

Digital Insulation Tester: DIT-13801 (1KV/ 3000M Ohm)

FEATURES :

*Real-time Bar-graph display of test voltage and voltage decay during discharge.

*Audible and visual message displayed if external voltage is present.

*Large LCD

*Continuous Buzzer

* IEC 1010 CAT III

SPECIFICATIONS:

Insulation Voltage: 250/500/1000 V

Insulation Resistance: 1000/2000/3000 MW Output Current:

1mA DC min. @ 0.25 MW (250V)
1mA DC min.@0.5 MW (500V)
1mA DC min. @1 MW(1000V)

Output SC Current: 1.5 mA

Accuracy: Insulation Resistance: +1.5 % of rdg + 2 dgt

W meter: +1.0 % of rdg +2 dgt

Low W
- Resistance 0 ~ 500
-Resolution: 0.01 W
- SC Current: 227 ma

Power Source: 1.5V (AA) x 8

Operating Temp.(degree C): 0 ~ 40

Humidity: 85 %

Dimensions: 133(L) x 73(W) x 59(D) mm

Weight: 625 g
