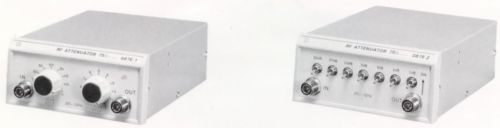

The model 085E/087E UHF band attenuation can provide the attenuation of high frequencies from DC to 950MHz
| Price | 085E-1 | 087E-1 | 085E-2 | 087E-2 |
|
549.95 |
549.95 |
549.95 |
549.95 |
| Model | 085E-1 | 087E-1 | 085E-2 | 087E-2 |
| Impedance | 50 W | 75 W | 50 W | 75W |
| Frequency Response |
DC ~ 950MHz |
| Max Attenuation |
80dB |
61dB |
| Step Range | 10dB x 7.1dB x 10 | 1,2,3,5,10,20,30db |
| Over A11 Accuracy |
+ 2dB |
| Insertion Loss |
less than 1dB |
| Max. VSWR |
1.3 |
| Max. Input Power |
0.5 Watt |
| Connector Type |
N Type or BNC Type |
| Power Supply |
AC 115/230V, 50/60Hz |
| Dimension |
160(W) x 83(H) x 260(D) mm |
| Weight |
1.9kg |
 |
 |
