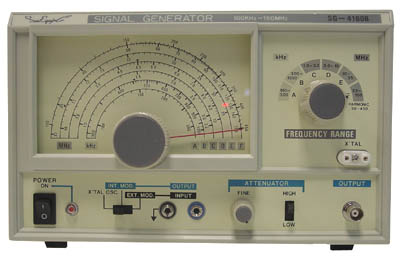

| RF Signal Generator, 100 KHz ~ 150 MHz: SG-4160B |
Description
Here is a compact solid-state RF signal generator designed for the hobbyist, service bench and technical instructor. The generator is most suited for checking and aligning the IF circuit and tuners in AM, FM, and TV sets.
Specifications:
- Frequency range: (up to 450MHz on 3'th harmonics)
- A: 100KHz ~ 320KHz.
- B: 300KHz ~ 1,100KHz.
- C: 1MHz ~ 3.3MHz.
- D: 3.0MHz ~ 11MHz.
- E: 10MHz ~ 35MHz.
- F: 32MHz ~ 150MHz.
- Frequency accuracy: ±5%.
- RF output: 100mVrms, approx (up to 35MHz unloaded).
- Output control: High-low switch and fine adjuster.
- Modulation:
- INT. 1KHz (AM) 30% approx.
- EXT. 50Hz ~ 20KHz, at less than 1Vrms input.
- Audio output: 1KHz, Min. 2 Vrms.
- Crystal oscillator: For 1 ~ 15MHz crystal in type HC-6u holder (not included).
- Power requirement: AC 115 / 230V, 50 / 60Hz Approx 3VA.
- Dimensions & weight:
- 150 (H) x 250 (W) x 130 (D) mm.
- Approx 2.5kgs.
- Accessories: BNC-clips x 1.
Features:
- Wide frequency range: 100KHz ~ 150MHz.
- With 1KHz oscillator in inner part for the purpose of modulation.
- Of portable type, high stability.
