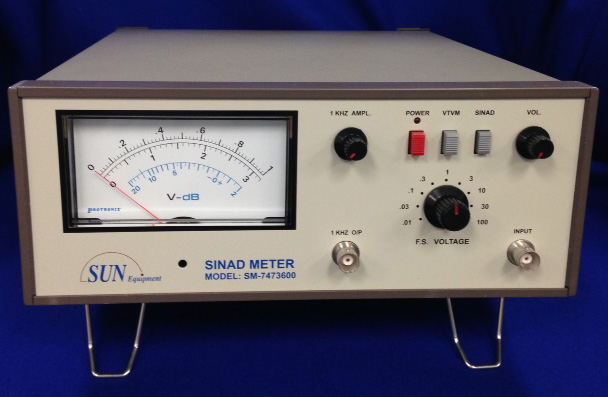

SINAD Meter : SM-7473600

Features

• 4 Functions in 1: SINAD Meter, Audio Amplifier, Millivoltmeter, Audio Generator
• FM Receiver Quality Tester
• 2mV to 100V Voltmeter
• Receiver Alignment without Sweep Mark
• Monitor Audio Output Directly
• Prime 1KHz Audio Generator

Specifications

A) SINAD Meter

SENSITIVITY: 20mV to 10V automatic gain controls

IMPEDANCE: 100K ?

SCALE: -20dB to +2dB

ACCURACY: + 1dB

REJECTION: 1000Hz

B) Millivolt Meter

RANGE: 10mV to 100V in 1,3 sequence total 9 ranges

IMPEDANCE: 1m?

ACCURACY: + 3% of FS

BW FLATNESS: + 0.2 dB in 100Hz to 20KHz

C) Audio Amplifier

The audio signal level is controlled by range and volume, the maximum output is 2 watts.

D) Audio Generator

A 1KHz prime phase shift oscillator is provided for demodulator test of a standard audio signal.

E) General Specifications

Weight: 4 Kgs

Power Requirement: AC 115/230V + 10%, 50/60Hz selection switch, 20W

Dimensions: 260mm(W) x 100mm(H) x 340(D)mm
