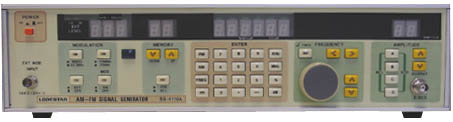

AM/ FM Signal Generator: SG-4110A
Dip Meter: DM-4061A
Modulation Meter: MM-476020
SWR/ RF Power Meter: | 320 | 340 |
SWR/ Power/ FS/ Ant. Matcher: CPS-100

Distortion Meter: DM-3104A,DM-3204
Signal / RF Generator: SG-4160B | SG-4162AD
Signal Tracer : SE-6100
Stereo Modulator : AG-2011
SINAD Meter : SM-7473600

Specifications

Frequency Range : 100KHz to 110MHz

Display : 6-digit LED display

Resolution : 100Hz (100KHz ~34.999MHz) 1KHz (35MHz ~110MHz)

Accuracy : Within + (5x 10^-5 +- 1 Count)

Output Range : -19dBu ~ 99dBu, 1dB Steps (0 dB= 1uV, Open end)

Display : 2-digit LED display

Impedance : 50 Ohm VSWR. less than 1.2

Spurious : -30dB or less

Residual Modulation (S/N)
FM Component, 73dB or more (relative to 75KHz deviation)
AM 55 dB or more (relative to 30% Modulation)

INTERNAL MODULATION
Frequency : 400Hz or 1KHz. Within + 3%

Meter Range : 0 ~ 100 KHz full scale

Distortion : Less than 0.05% at 75KHz deviation

External Modulation : 20 Hz to 100 kHz

Meter Range : 0 ~ 100% full scale

Distortion at 30% AM : Less than 0.5% below 30 MHz

External Modulation : 20 Hz to 10 kHz

PRESET FUNCTION
Assorted Presetting : UP to 100 sets of frequency, and put level and modulation functions can be stored.

Remote Control Function
1. Frequency increment.

2. Out put level Control.

3. Modulation ON/OFF.

4. Recall Operation of Preset function.

5. Frequency UP/down and Clear.

Power Supply : AC 115/230V + 10% 50/60Hz Approx. 13VA

Dimensions & Weight : 425(W) x 115(H) x 350(D)mm ,Approx.. 6kgs
