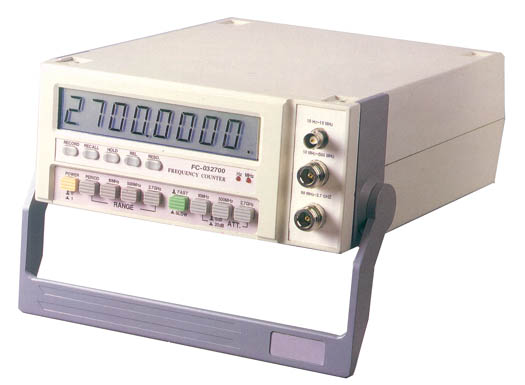

FC-032700: 2.7GHz Frequency Counter



* TCXO (Temperature compensated crystal oscillator) time base, high stability and accuracy.

* High sensitivity for the VHF & UHF freq. measurement, useful for the CB amateur

* Wide measuring range up to 2.7 GHz

* Good resolution, 0.1 Hz min. display unit for 10 MHz range

* Exclusive microprocessor IC offers the intelligent functions: Frequency, Period, Multiresolution, Data Hold, Relative Measurement, Data Record( Max. Min. Avg)

* 8-digit LCD display for low power consumption & clear read-out even in bright ambient light condition.

* RS-232 interface

* Optional telescoping antenna accessory can be used to pick up transmit frequencies from portable or fixed radios such as : polices, fire fighters, HAM, Taxi, Aircraft etc.


Display 0.72 " LCD , 8 digits
Measurement Frequency, Data Hold, Relative, Data Memory (max. min. average), Period
Range Frequency :
2700 MHz 50 MHz to 2700 MHz
500 MHZ 10 MHz to 500 MHz
10 MHz 10 Hz to 10 MHz
Period 10 Hz to 10 MHz
Typical Sensitivity

10mV to 50 mV rms
Period 10mV to 50mV rms
Time Base Stability v.s. Temp. 1.5 PPM (10 degrees C ~ 30 degrees C)
Accuracy + (2 PPM + 1 d)
Time Base Circuit 16.776 MHz, TCXO
Over Input

2700 MHz ~ 500 MHz range- Max. 5 V peak to peak

10 MHz & Period range- Max. 250V peak to peak

Input Connector

10 MHz Range: BNC connector

500 MHz ~ 2700 MHz Range: N coaxial connector

Case Plastic housing with handle
Power Supply 6 x 1.5 V AA(UM-3) Battery or AC adapter
AC Adapter Power Input Optional 9V DC, 300 to 500 mA, central postive for socket
Power Consumption

About DC 45 mA - 10 MHz & Period Range

About DC 105 mA - 2700 MHz ~ 500 MHz Range

Standard Accessory Instruction Manual, BNC connector with alligator clips,
Optional Accessories

AT-20: Telescoping RF pickup antenna with BNC connector
BB-22: Cable w double BNC connectors
NN-23: Dirrect probe with double N coaxial connector
NB-24: BNC to N coaxial connector adapter

Dimensions 11" x 8.3" x 3.5"
Weight 0.27 lb
