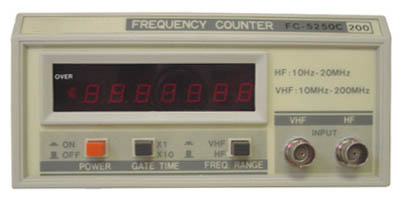

>FC-5250C: 10Hz ~ 200MHz Frequency Counter

Specifications

FREQUENCY RANGE
FC-5250C: 10Hz ~ 200MHz, HF: 10Hz ~ 20MHz, VHF: 10MHz ~ 200MHz

ACCURACY: +- 1 count, +- Reference time Accuracy

GATE TIME: 0.1 second and 1 second

MULTIPLICATION: HF and VHF (UHF)

INPUT SENSITIVITY: 10Hz ~ 200MHz 35mV

INPUT IMPEDANCE: HF 1 M W, VHF 50 W (UHF50 Ohm)

MAX INPUT VOLTAGE: Less about 10V Effective

REFERENCE TIME FREQUENCY: 5 MHz,

Reference Time Accuracy:
3 x 10 ^-5 (50 ppm) 0 to 40
