Frequency Counter: FC-5250C/FC-5270

FREQUENCY RANGE
FC-5270: 10Hz ~ 1.2GHz, HF: 10Hz to 15MHz, UHF: 10MHz ~ 1.2GHz

ACCURACY: +- 1 count, +- Reference time Accuracy

GATE TIME: 0.1 second and 1 second

MULTIPLICATION: HF and VHF (UHF)

INPUT SENSITIVITY: 10Hz ~ 200MHz 35mV

INPUT IMPEDANCE: HF 1 M W, VHF 50 W (UHF50 Ohm)

MAX INPUT VOLTAGE: Less about 10V Effective

REFERENCE TIME FREQUENCY: 5 MHz,

Reference Time Accuracy:
3 x 10 ^-5 (50 ppm) 0 to 40

Frequency Counters-> \| FC-03250 \| FC-032700 \| FC-5250C \| FC-5270A \|

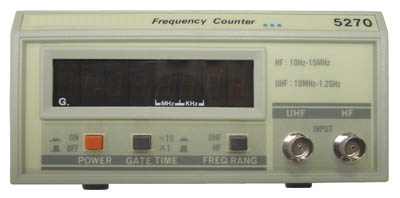

FC-5270A: 10Hz ~ 1.2GHz Frequency Counter
Specifications FREQUENCY RANGE FC-5270: 10Hz ~ 1.2GHz, HF: 10Hz to 15MHz, UHF: 10MHz ~ 1.2GHz ACCURACY: +- 1 count, +- Reference time Accuracy GATE TIME: 0.1 second and 1 second MULTIPLICATION: HF and VHF (UHF) INPUT SENSITIVITY: 10Hz ~ 200MHz 35mV INPUT IMPEDANCE: HF 1 M W, VHF 50 W (UHF50 Ohm) MAX INPUT VOLTAGE: Less about 10V Effective REFERENCE TIME FREQUENCY: 5 MHz, Reference Time Accuracy: 3 x 10 ^-5 (50 ppm) 0 to 40
