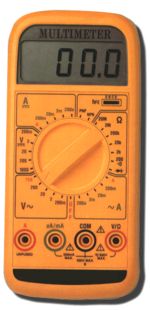

Digital Multimeter with RS-232: DMM-03680
  • Multifunction measurement : ACV, DCV, ACA, DCA,OHM, Continuity Beeper, Transistor hFE, Diode,
  • Meets IEC safety requirement.
  • High accuracy in measuring.
  • High internal impedance assures minimum measuring error.
  • Rotary function switch, easy operation.
  • Large size LCD display, easy reading.
  • LCD display, clear readout even in high ambient light environment.
  • Compact, light weight & excellent functionality.
  • Overload protection for any range.
  • Drop proof.
  • RS232 PC interface, photo couple isolated circuit.
  • When apply the optional software, then the meter can be used as data logging, data recorder & other intelligent applications.

General Specifications
Display
18 mm (0.7") LCD, 3 1/2 digits.
Measurement
& Functions
DCV, ACV, DCA, ACA, ohms, hFE, Continuity Beeper.
Polarity
Automatic Switching,
'-' indicates negative polarity.
Zero Adj.
Automatic.
Over-input
Display shows '1' or '-1'.
Sampling Time
Approx. 0.4 second.
RS232
Isolated (photo couple) RS232 serial data
Output
output, 9600 baud rate.
Operating
Temperature
0 C to 50 C (32 F to 122 F).
Operating
Humidity
Max. 80% RH.
Power Supply
006P DC 9V battery(heavy duty type).
Power
Consumption
Approx. DC 7 mA.
Dimension
204 x 90 x 36 mm (7.3 x 3.4 x 1.5 inch).
Weight
322 g/0.71 LB.
Standard
Accessories
Included
Red and Black Test Leads ........ 1 pair.
0.5 Amp Spare Fuse .................. 1 PC.
Instruction Manual ..................... 1 PC.
2-2 Electrical Specifications
DC VOLTAGE
RANGE
ACCURACY
RESO-
LUTION
INPUT
IMPEDANCE
OVERLOAD CKT.
PROTECTION
200mV
±(0.5%+1d)
100mV

10 M W
500V DC,
350V AC, 15 secs
2V

±(0.8%+1d)
1mV
DC 100V
AC 800 V
15 secs
20V
10mV
200V
100mV
1000V
1V
AC VOLTAGE              FREQ. RESPONSE: 40Hz-500Hz, SINE WAVE
                                                       SPEC. TESTED ON 60Hz/50Hz
RANGE
ACCURACY
RESO-
LUTION
INPUT
IMPEDANCE
OVERLOAD CKT.
PROTECTION
200mV

±(1%+2 d)
100mV

10 M W
500V DC,
350V AC, 15 secs
2V
1mV
DC     100V
AC 800 V
15 secs
20V
10mV
200V
100mV
750V
1V
DC CURRENT
RANGE
ACCURACY
RESO-
LUTION
VOLTAGE
DROP in F.S.
OVERLOAD CKT.
PROTECTION
200 ma

±(1%+1d)
0.1 ma

DC 200 mV

0.5 A Fuse
2mA
1 ma
20mA
10 ma
200mA
100 ma
A *
10 ma
UN FUSED
* A range : 0 to 10 A - continuous operation
> 10 A   20 A - 1 min. operation max.
AC CURRENT                  FREQ. RESPONSE: 40Hz-500Hz, SINE WAVE
                                            SPEC. TESTED ON 60Hz/50Hz
RANGE
ACCURACY
RESO-
LUTION
VOLTAGE
DROP in F.S.
OVERLOAD CKT.
PROTECTION
200 ma

±(1.2%+2d)
0.1 ma

AC 200 mV

0.5 A Fuse
2mA
1 ma
20mA
10 ma
200mA
100 ma
A *
10 ma
UN FUSED
* A range : 0 t0 10 A - continuous operation
> 10 A    20 A - 1 min. operation max.
RESISTANCE
RANGE
W
ACCURACY
RESO-
LUTION
OPEN CKT.
VOLTAGE
OVERLOAD CKT.
PROTECTION
200
±(1%+3d)
0.1 W
Approx. 3 V

AC/DC 500 V
2K

±(0.8%+1d)
1 W

Approx.
0.3 V Max.
20K
10 W
200K
100 W
2 M
1K W
20 M
±(2%+2d)
10K W
CONTINUITY BEEPER
A continuity test beeper is standard, when checking short or
open circuit, it is not necessary to look at the meter. The
beeper sounds if continuity is present.
TRANSISTOR hFE MEASUREMENT
0 - 1000 hFE values of either p.n.p. or n.p.n. Transistor. (Test
condition: base dc current approx. 10 ma, VCE: approx. 2.8 V).
RS232 OUTPUT
Isolated (photo couple) RS232 serial data output, 9600 baud
rate. Other detail spec.
