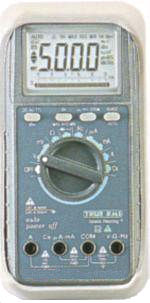

| Digital Multimeter: DMM-01890 |
Features:
Specifications:
| Display Counts | :5000 | |
| DCV | ||
| Range: | :500mV, 5V, 50V, 500V, 1000V | |
| Resolution | : 0.1mV, 0.001V, 0.01V, 0.1V, 1V | |
| Accuracy | : 500mV ~ 1000V+(0.1% rdg+1dgt) | |
| ACV | ||
| Range: | : 500mV, 5V, 50V, 500V, 750V | |
| Resolution | : 0.1mV, 0.001V,0.01V, 0.1V, 1V | |
| Accuracy | : 500mV ~ 750V+(1.0%rdg+5dgt), 50Hz ~ 60Hz | |
| : 500mV+(1.5%rdg+5dgt), 45Hz ~ 5kHz | ||
| : 5V ~ 50V+(1.5%rdg+5dgt), 45Hz ~ 5kHz | ||
| : 500V ~ 750V+(2.0%rdg+5dgt), 45Hz ~ 1kHz | ||
| : 500mV ~ 50V+(3.0%rdg+5dgt), 5kHz ~ 20kHz | ||
| DCA | ||
| Range: | : 5000mA, 500mA, 10A | |
| Resolution | : 1mA, 0.1mA, 0.01A | |
| Accuracy | : 500mA, 10A+ (0.5%rdg+2dgt) | |
| ACA | ||
| Range: | : 500mA, 500mA, 10A | |
| Resolution | : 1mA, 0.1mA, 0.01A | |
| Accuracy | : 45Hz ~ 2kHz, 5000mA ~ 10 A+(1.5%rdg+5dgt) | |
| OHM | ||
| Range: | : 500W, 5kW, 50kW, 500kW, 5MW, 50MW, | |
| Resolution | : 0.1kW ~ 0.01MW | |
| Accuracy | : 500W+(0.5%rdg+3dgt), 5kW ~ 500kW+(0.6%rdg+2dgt), 5MW+(0.8%rdg+2dgt) | |
| : 50MW+(3.0%rdg+5dgt) | ||
| Hz | ||
| Range: | : 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10MHz | |
| Resolution | : 0.01 Hz ~ 0.001MHz | |
| Accuracy | : + (0.05%rdg+2dgt) | |
| CX | ||
| Range: | : 5nF ~ 50mF | |
| Resolution | : 0.001nF ~ 0.001mF | |
| Accuracy | ::5nF+ ( 2.0%rdg+4dgt) | |
| : 50nF ~ 500mF+(2.0rdg+4dgt) | ||
| : 5mF ~ 50mF+( 3.0%rdg+5dgt)@ <2mF, >2mF, No SPEC | ||
| Dimensions | 192(L) x 90(W) x 37(H) mm | |
| Weight | 760 g | |
 |
 |
