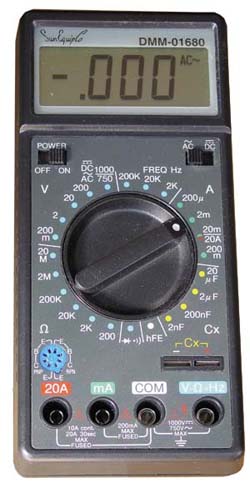

| DMM-01680: Digital Multimeter |
Specifications:
| Display Counts | :1999 | |
| DCV | ||
| Range: | :200mV, 2V, 20V, 200V, 1000V | |
| Resolution | :100mV, 1mV, 10mV, 100mV, 1V | |
| Accuracy | :+(0.5% rdg+1dgt) | |
| ACV | ||
| Range: | : 200mV, 2V, 20V, 200V, 750V | |
| Resolution | : 100uV, 1mV, 10mV, 100mV, 1V | |
| Accuracy | : 40Hz ~ 500 Hz, 200mV ~ 750V+(1.25%rdg+4dgt) | |
| DCA | ||
| Range: | :200mA, 2mA, 20mA, 200mA, 20A | |
| Resolution | : 0.1mA, 1mA,10mA, 100mA, 10mA | |
| Accuracy | :200mA ~ 200 mA+(1.0%rdg+1dgt), 20A+(2.0%rdg+3dgt) | |
| ACA | ||
| Range: | :200mA, 2mA, 20mA, 200mA, 20A | |
| Resolution | : 0.1mA, 1mA,10mA, 100mA, 10mA | |
| Accuracy | :40Hz ~ 400 Hz,200mA ~ 200 ma+(1.5%rdg+3dgt), 20A+(2.5%rdg+4dgt) | |
| OHM | ||
| Range: | : 200W, 2kW, 20kW, 2MW, 20MW | |
| Resolution | : 0.1W ~ 10kW | |
| Accuracy | : 200W+(0.75%rdg+4dgt), 2kW ~ 2MW+(0.75%rdg+1dgt), 20MW+(1.5%rdg+5dgt) | |
| Hz | ||
| Range: | : 2k ~ 200 kHz | |
| Resolution | : 1 Hz ~ 100 Hz | |
| Accuracy | : + (1.0%rdg+3dgt) | |
| CX | ||
| Range: | : 2mF ~ 20mF | |
| Resolution | : 1pF ~ 10nF | |
| Accuracy | : +( 2.0%rdg+4dgt) | |
| Dimensions | 162(L) x 76(W) x 32(H) mm | |
| Weight | 440 g | |
 |
 |
