AC/DC CLAMP METER: CLM-01600

Digital Clamp Meters: | CLM-03055 | CLM-01600 | CLM-01620 | CLM01660|

Analog Clamp Meters: | ACM-13000 | ACM-13300 | ACM-13310 | ACM-13375 | ACM-13600 |

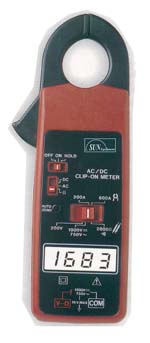

CLM-01600: Digital AC/ DC Clamp-on Meter

$169.95

Features:

600A
AC/DC Selectable
Voltage up to 750V AC, 1000V DC
Resistance up to 2000 W
1% Accuracy
Autozero
Frequency Range 15 to 400Hz

Specifications:

Current Range		600A
Jaw Size		31 mm
Display Counts		2000
DCV		:
	Range	200 ~ 1000V
	Resolution	0.1V
	Accuracy	±(0.1%rdg+3dgt)
ACV
	Range	200V ~ 750V
	Accuracy	45Hz ~ 400Hz±(1% rdg+ 3 dgt)
DCA
	Range	200A/ 600A
	Accuracy	(1.0 % of range + 5 dgt)
ACA
	Range	200 / 600A
	Accuracy	50Hz/60Hz (1% of range + 5 dgt)
		120 ~ 600A±(1%rdg+0.5A)
OHM
	Range	2000W
	Accuracy	01 % of rdg + 1dgt
	Resolution	1W
Continuity Audible		x
Peak Hold		x
Data Hold		x
Dimension		207(L) x 64(W) x 27(H) mm
Weight		0.29 kg
