Capacitance Meter-> DCM-01128

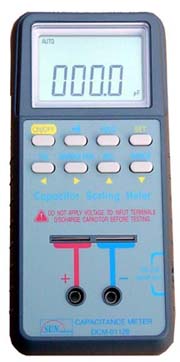

DCM-01128: Handheld Digital Capacitance Meter

Features:

  • 5000 Count static recording function
  • Tolerance Mode
  • Setting HL/LO limit
  • Wide range with 0.1pF Resolution Communication
  • Capacitance Range 1000pF to 10mF
  • 1% Basic Accuracy
  • Full pushbutton operation
  • Auto power off
  • Practical Design, durable construction.
  • Full Auto-Arranging capability
  • Large, easy to read LCD display
  • Relative Mode

Specifications:

Ranging Mode Auto Manual Ranging
Capacitance
Range: 500.0pF, 5nf, 50nf, 500nf, 5uF, 50uF, 500uF, 5000uF, 50mF
Resolution :0.1pF ~ 10uF
Accuracy : 500pF + (1%rdg +10dgt)
: 5nF~50uF + (1%rdg+3dgt)
: 500uF~50mF+ (2%rdg+3dgt) at <2mF, (>20mF no spec.)
Dimensions 192(L) x 90(W) x 37(H) mm
Weight 0.50Kgs
