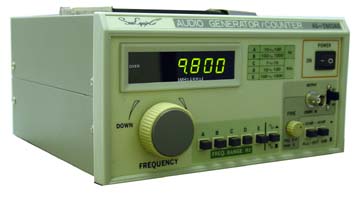

Specifications

OSCILLATOR SECTION:
Frequency Range: 10Hz -1 MHz 5 decade bands
Accuracy with Counter Section Accuracy
Output Impedance: 600 W unbalanced
Output Control: 0dB/-20dB/-40dB and Fine adjuster.

Sine Wave Output
Range: l0Hz ~ 1MHZ
Output Voltage: 8Vrms, max.
Output Distortion:
Less than 0.05% 500Hz ~ 50KHz
Less than 0.5% 50Hz ~ 500KHz
Output Flatness: + 1dB (1KHz)

Square Wave Output
Range: 20Hz ~ 20KHz
Output Voltage: l5Vp-p or more
Rise Time: 0.5mS

Synchronization
Range: + 1%/v of oscillator frequency per Vrms
Input Impedance: Approximately 10 KW
Maximum Input:10Vrms

COUNTER SECTION:
Frequency Range
10Hz to 150MHz
HF 10Hz to 10MHz
VHF 10MHz to 150MHz
Accuracy: +1 Count, + Reference time Accuracy
Gate Time: 0.1 sec and 1 sec
Input Sensitivity:
35mv ~ 50mv
10Hz ~ 150MHz
Input Impedance: HF 1 MW VHF 50 W
MAX. Input Voltage: Less about 3V effective
Reference Time Frequency:10 MHz
Reference Time Accuracy: 5 x 10^-5 (50ppm) 0° to 40°C, 1 x 10^-5 (10ppm)23°C + 3°C
Display: Decimal 6 Digit LED
Power Requirement: AC 115/230V + 10% 50/60Hz, Approx. 4VA
Dimensions & Weight: 215(W) x 120(H) x 220(D)mm, Approximately 1 .6kg
Accessories: BNC-clips x 1
