| PCB-532005Q | PCB-532006 Series |

PCB Prototyping Machines

Features:
Surface and Tool Length Detection:
PCB-532006 series are equipped with Z-axis detection to collect the height distribution on the copper board and automatically to adjust the height while cutting the copper board.
There is no need to manually adjust the depth while using PCB-532006 series.
Z axis is driven by a stepper motor which will be more controllable and will last much longer than a solenoid which might be unfunctional after being used for 2 or 3 years.

User friendly PCAM software for all Windows OS
PCAM software is compatible with all Windows operating systems and accepts RS-274D/X Gerber files from Protel/ PADS/ P-CAD/ OrCAD/ CAM350/ Tango,... etc. AutoCAD *.dxf is acceptable as well.
PCAM provide some handy functions such as array, copy, mirror, working time estimate, working area test, routing path offset.
Gerber file edit functions include move, add, delete pad, track, drill,... etc.

Drilling/ Milling/ Routing in one machine
Drilling: Automatically adjusts the best speed based on the drill bit size to avoid drilling bits from breaking.
Milling: Automatically adjusts the depth after surface detection to keep less cutting on dielectric.
Routing: Automatically offsets the router tool diameter to make the precise shape.

Tools:
Engraving Tools: Isolate the cutting paths
Endmill Tools: Remove copper
Drill Bits: Drill Holes
Contour Routers: Route inner and outer board contours


T1: 60 or 90 degree engraving tools isolate traces	T2: 0.5 mm endmill tool cuts a wider isolated space	T3: 1.5 mm endmill cuts big area from the board

Specifications:

	PCB-532006	PCB-532006H	PCB-532006L	PCB-532006LH
Working Area	12.6"x7.9" (320x200 mm)	12.6"x7.9" (320x200 mm)	16.5"x13.4" (420x340 mm)	16.5"x13.4" (420x340 mm)
Resolution	0.2 mil (0.005 mm)	0.2 mil (0.005 mm)	0.2 mil (0.005 mm)	0.2 mil (0.005 mm)
Control Axes	X, Y, Z	X, Y, Z	X, Y, Z	X, Y, Z
X/Y/Z Motor	Stepper Motors	Stepper Motors	Stepper Motors	Stepper Motors
Max. Positioning Speed	1.97"/sec (50 mm/sec)	2.36"/sec (60 mm/sec)	1.97"/sec (50 mm/sec)	1.97"/sec (60 mm/sec)
Max Working Speed	0.8"/sec (20 mm/sec)	1.2"/sec (30 mm/sec)	0.8"/sec (20 mm/sec)	1.2"/sec (30 mm/sec)
Min. Trace Width	4 mil (0.1mm)	4 mil (0.1mm)	4 mil (0.1mm)	4 mil (0.1mm)
Min. Hole Diameter	12 mil (0.3 mm)	8 mil (0.2 mm)	12 mil (0.3 mm)	8 mil (0.2mm)
Drilling Capacity	90 Strokes/min	100 Strokes/min	90 Strokes/min	100 Strokes/min
Tool Change	Manual	Semi-automatic	Manual	Semi-automatic
Collet	1/8" Collet	1/8" Collet	1/8" Collet	1/8" Collet
Tool Length Check	Automatic	Automatic	Automatic	Automatic
Board Surface Check	Automatic	Automatic	Automatic	Automatic
Spindle Speed	35,000 rpm (Max.)	5,000~60,000 rpm (programmable)	35,000 rpm (Max.)	5,000~60,000 rpm (programmable)
Dimensions (WxDxH)	13.8"x22.4"x15" (350x570x380 mm)	13.8"x22.4"x15" (350x570x380 mm)	18.5"x27"x15" (470x685x380 mm)	18.5"x27"x15" (470x685x380 mm)
Weight	61 lbs (28 Kgs)	64 lbs (29 Kgs)	92 lbs (42 Kgs)	95 lbs (43 Kgs)
Power	AC 110/ 220V	AC 110/ 220V	AC 110/ 220V	AC 110/ 220V
Tool Change Reminder Pager	Optional	Optional	Optional	Optional
Vision System	Optional	Optional	Optional	Optional

Standard Accessories:

1. Software CD
2. User's Manual
3. PCAM software
4. USB interface cable
5. Surface inspection cable
6. Power cord
7. Surface machining tools 20 pcs (16 pcs of engraving tools, 2 pcs of 0.5 mm endmills 2 pcs of 1.5mm endmills)
8. Penetrating tools 20 pcs (2 pcs of router bits are included)
9. Tool exchange pliers
10. 5 pcs of locating pins
11. vacuum hose (adaptor)
12. 10 pcs of FR4 H/H copper boards (1.6 mm thick)

Optional Accessories:


Pager	Vision System

1. Wireless Tool Change Reminder Beeper: You don't have to stay with the machine while it is working. The pager will be triggered as
the tool needs to be changed or the work is done. The pager is working within a quarter mile distance.

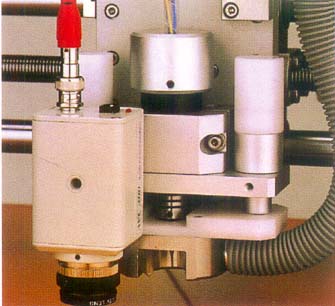

2. Vision System: The CCD camera can help you precisely drill and route. Especially working on multi-layer projects.
The 30X CCD can make the PCB PROTOTYPE Machine a measuring machine. Distance, arc, and diameter measurements
can be done on the PCB machine.
