Pocket Size: | DMM-04320P | DMM-15810 |
Handheld:     | DMM-1220 | DMM-1230 | DMM-1240 | DMM-1250 | DMM-01620 |
                          | DMM-01680 | DMM-01890 | DMM-03680 |
BenchTop:    |DMM-52803
DMM-52804

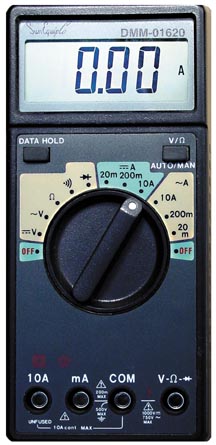

Digital Multimeter: DMM-01620

Features:

Specifications:

Display Counts : 2000
DCV
  Range: :200mV, 2V, 200V, 1000V
  Resolution :100mV, 1mV, 10mV, 100mV, 1V
  Accuracy : 200mV+(0.5% rdg+4dgt), 2V ~ 1000V+(10.8%rgd+4dgt)
ACV
  Range: : 2V, 20V, 200V,750V
  Resolution : 1mV, 10mV, 100mV, 1V
  Accuracy : 40Hz ~ 500 Hz, 2V ~ 750V+(1.0%rdg+8dgt)
DCA
  Range: :20mA, 200mA, 20mA
  Resolution : 10mA, 100mA,10mA
  Accuracy :2m ~ 200 mA+(1.2%rdg+4dgt), 20A+(2.0%rdg+4dgt)
ACA
  Range: :20mA, 200mA, 20mA
  Resolution : 10mA, 100mA,10mA
  Accuracy :2m ~ 200 ma+(1.5%rdg+8dgt), 20A+(2.0%rdg+8dgt)
OHM
  Range: : 200W, 2kW,20kW,2MW,20MW
  Resolution : 0.1W ~ 10kW
  Accuracy : 200W ~ 200kW+(0.8%rdg+4dgt), 2MW+(1.0%rdg+4dgt),20MW+(3.0%rdg+4dgt)
Dimensions 162(L) x 76(W) x 32(H) mm
Weight 400 g
