S p e c i f i c a t i o n s

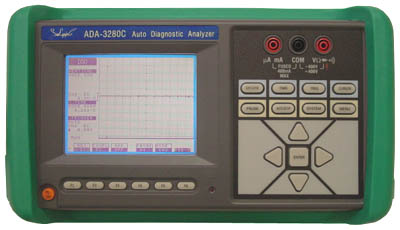

| Model | ADA-3280C |
| Auto Scope | |
| Bandwidth/Sample Rate | 20MHz/20MS/S (2CH) |
| Volt/Time Range | Variable |
| Screen Memories | 20 |
| Auto Setup Memories | 10 |
| Reference Waveforms |
SCOPE
| Bandwidth/Sample Rate | 20MHz/20MS/S (2CH) |
| Wave form Measurement | CH1, CH2, Dual, Add Subtract, X-Y |
| Volt Range | 5mV~20V/div |
| Time Range | 50ns~20s/div |
| Cursor Measurement | DeltaV, DeltaT, 1DeltaT, VPP |
DMM
| Display/DCV Accuracy | 4000 Count/ +-0.5% |
| Function | DCV/ACV/AMPS/Ohm/Continuity Beeper |
| Other DMM Features | Max/Min/Average |
SETUP
| Options | CONTRAST PRINTER INITIAL RESET |
OTHERS
| RS-232C Interface | RS232 |
| Display Back Light | CCFL |
| Printer Parallel Port | Yes |
| Battery Life | 1-2 hrs |
| Display Resolution | 320 x 240 |
| AC Operate | Yes |
| DC Operate | Yes Optional Adapter |
| Battery Operate | Yes |
OPTIONAL ACCESSORIES
| RC-320 | RS232 Cable |
| DP-37 | Automotive Power Adapter |
| ECT-670 | AC/DC Current Clamp Probe |
| PC-320 | Printer Adapter Cable |
| FD-328 | Auto Viewer Software |
| TH-02 | Industrial Alligator Clip |
| TL-3 | Banana Adapter |
 |
