Analog Multimeters: AMM-15360TR | AMM-15960TR

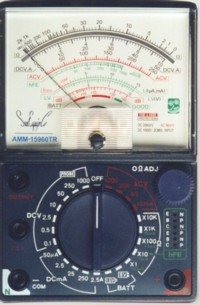

Analog Multimeter: AMM-15960TR




Ranges

DC VOLTAGE: 0-0.1-0.5-2.5-10-50-250-1000V
AC VOLTAGE: 0-10-50-250-1000V
DC CURRENT: 0-50u-2.5m-25m-250m-2.5A
RESISTANCE: 0-R x 1-R x 100-R x 1K-R x 10kW
DECIBELS: -10 ~ +22dB ~ +62dB
BATT TEST" 1.5V,9V
Iceo:0~150u - 1.5m-15m-150mA
hFE:0~1000

Accuracy

DC VOLTAGE: + 3% OF FULL SCALE
AC VOLTAGE: + 5% OF FULL SCALE
DC CURRENT: + 3% OF FULL SCALE
RESISTANCE: + 3% OF SCALE LENGTH
DECIBELS:+4% OF SCALE LENGTH
BATT TEST: +5% OF SCALE LENGTH
Iceo: +5% OF SCALE LENGTH

Battery 1.5V (UM-3) x 2, 9V(006P) x 1 (not included)
Dimensions 150 x 102 x 40mm
Weight 280g
