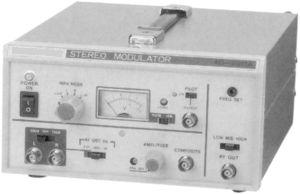

Features

• Over 50dB left-right channel separation at 1KHz for critical separation tests.
• Built-in indicator meter
• Modulated RF output for simulation of FM broadcast signals used in overall receive testing.
• Phased condition of the pilot and Subcarrier Signals is of the highest degree.

Specifications

RF SECTION
Carrier Frequency: 98MHz ± 2MHz.
Output Voltage: 10mV, 1mV, 0.1mV With Switch Selector
Output Impedance: 75 W (Unbalanced)
Frequency Deviation: Pilot: 7.5KHz (10%) , Composite: 0 ~75KHz Adjustable (0 ~ 100%)

COMPOSITE SIGNAL
Pilot Signal: 19KHz ± 2Hz output 0.8 Vrms
Internal Modulation: 400Hz, 1KHz ± 1% (Switch Selector) output 1Vrms.
Distortion: Less than 0.5%
L-R Separation: Over 50dB

EXTERNAL MODULATION
Frequency Range 50Hz ~ 15KHz
Pre-Emphasis: 50, 75 u S and off
L-R Separation (L-R): >45dB 100Hz ~3KHz, >35dB 50Hz ~15KHz
Output Voltage: 0 ~ 1 Vrms Adjustable
Subcarrier Leakage: Less than -40dB
Pilot Signal Output: 100mVrms
SCA Signal Output: 67KHz ± 3KHz 100mVrms

Power Supply: 115/230V, 50/60Hz ± 10% Approximately: 11VA

Dimensions & Weight:: 210(W) x 120(H) x 305(D)mm, Approximately 3kg
