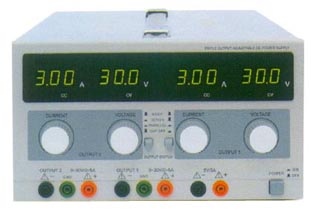

PS-45303TE: Adjustable Triple Output DC Power Supply






Features:

Constant Voltage and Constant Current
Independent, Series, and Parallel Outputs




Specifications:

Independent Output: 0 ~ 30V x 2
0 ~ 3A x 2
Series Output: 0 ~ 40V
0~ 3A
Parallel Output: 0 ~ 30V
0 ~ 6A
Auxiliary Output: 5V
3A
Size: 260 x 160 x 370 mm
Weight: 10.5 kgs
Line regulation: CV 1 x 10 - 4 + 3mV; CC 2 x 10 - 3 + 3mA
Fixed output 10mV
Load regulation:
CV 1 x 10 - 4 + 2mV; CC 2 x 10 - 3 + 3mA (1 </= 3A)
CV 1 x 10 - 4 + 5mV; CC 2 x 10 - 3 + 5mA (1>3A)
CV 2 x 10 - 4 + 5mV; CC 2 x 10 - 3 + 5mA (1 >/= 10A)
Fixed output 10mV
Ripple & Noise: CV 0.5mV rms; CC 3mA rms (1 </= 3A)
CV 1.0mV rms; CC 3mA rms (1>3A)
Fixed output 2mV
Fixed output accuracy: 2.5%
Display accuracy: Voltmeter +/- (0.2%Rdg+2digits), +/- 2.5% Full Scale
Ampmeter +/- (1.0%Rdg+2digits), +/- 2.5% Full Scale
Input Voltage: 110 ~ 127 VAC +/- 10%, 220 ~ 240 VAC +/- 10% Switchable
