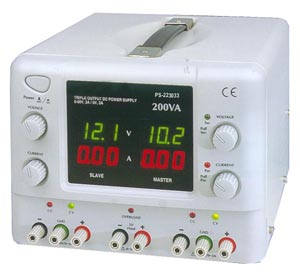

| PS-22303T: Digital Triple Output DC Power Supply |
$429.95
|
| Power Transformer | E.I. Type Transformer |
| Max. Continual output power | 195 VA |
| Max. Raised Temperature | <45 °C |
| Independent output | 0-30V/0-3Ax2, 5V Fixed / 0-3A; Triple output |
| CONSTANT VOLTAGE CHARACTERISTICS | |
| Regulation | Line<0.01% + 3mV, Load<0.01% + 5mV |
| Ripple & Noise | <1m Vrms |
| Temperature Coefficient | <300 PPM/°C |
| CONSTANT CURRENT CHARACTERISTICS | |
| Regulation |
Line<0.2% + 3mA, Load<0.2% + 5mV |
| Ripple & Noise | <3m Arms |
| 5V FIXED OUTPUT | |
| Regulation | Line <5mV, Load <10mV |
| Ripple & Noise | <2m Vrms |
| Voltage Accuracy | 5V ± 0.25V |
| Max. output current | 3A |
| TRACKING OPERATION | |
| Parallel Regulation | Line <0.01% + 3mV, Load <0.01% + 5mV |
|
Series + and - Supply |
Line <0.01% + 3mV, Load <0.01% + 5mV |
|
Series Single Supply |
Line <0.01% + 5mV, Load Regulation <300mV |
| DISPLAY | |
| Voltage | 3 digits 0.56 Green LED |
| Current | 3 digits 0.56 Red LED |
| Accuracy | <0.1% + 2 digits |
| GENERAL | |
| Power Source | ACV 115/230 ± 10%, 50/60Hz |
| Dimensions(WxHxD) | 230 x 170 x 310mm |
| Weight | 7.9 kg. |
 |
 |
