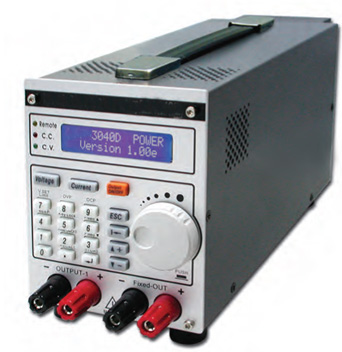

| PPS-17304D: PROGRAMMABLE Digital Dual Output DC Power Supply |
|
| Max. power | 135 Watts |
| 2 Independent outputs |
0.05V ~ 30V(1.5/1.8/2.5/3.3/5V) 0.01A ~ 4A (3A) |
| CONSTANT VOLTAGE CHARACTERISTICS | |
| Load Regulation | 3mV |
| Line Regulation | < 0.02% + 3mV |
| CONSTANT CURRENT CHARACTERISTICS | |
| Load Regulation |
< 0.02% + 3mA |
| Line Regulation | < 0.02% + 2mA |
| PROGRAMMING ACCURACY | |
| Voltage | 0.05% + 20mV |
| Current | 0.2% + 10mA |
| RIPPLE & NOISE (20 Hz to 20 MHz) | |
| Voltage | < 1mV rms / 5mVp-p |
| Current | 2mA rms / 6mAp-p |
| STABILITY (8 hours) | |
| Voltage | < 0.3% + 3mV |
| Current | < 0.2% + 2mA |
| TEMPERATURE COEFFICIENT (Per | |
