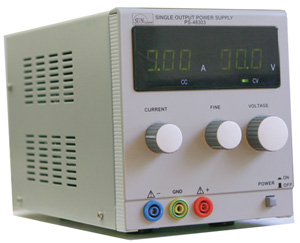

| Single DC Power Supplys |
|
Model |
Constant Voltage(CV) |
Constant Current (CC) |
|
PS-48305 |
0 - 30VDC |
0 - 5A |
|
PS-48403 |
0 - 40VDC |
0 - 3A |
|
PS-48503 |
0 - 50VDC |
0 - 3A |
|
PS-48406 |
0 - 40VDC |
0 - 6A |
Features:
* Two Digital Panels
* High Efficiency, Light and Compact Design
* High Power Density
* Fine and Course Adjustments
* Overload and Reverse Polarity Protection
Specifications:
| Voltage Operation: | ||
| Line Regulation: | 0.01% + 3mV | |
| Load Regulation: | 0.01% + 2mV | |
| Ripple & Noise: | 0.5 mV r.m.s. | |
| Current Operation: | ||
| Line Regulation: | 0.2% + 3mV | |
| Load Regulation: | 0.2% + 3 mV | |
| Ripple & Noise: | 3 mV r.m.s. |
Input Voltage: 110 ~ 127V/ 220 ~ 240V
 |
 |
