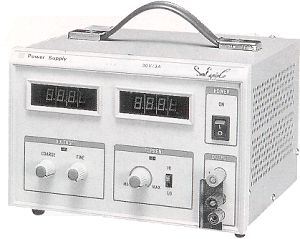

8200, 8301, 8201: Digital Single DC Power Supply



Specifications

Model Voltage Current
8200 (30V/3A)
Digital
Analog
8210 (30V/3A)
Digital
Digital
8301 (30V/5A)
Digital
Digital
8201 (30V/5A)
Digital
Analog


A) Constant Voltage Range (CV): Digital display indicating 0-30 V DC continuously variable with fine adjustable for Model: 8200 and 8201.

Load Regulation: Less than or equal to 0.01% + 3mV

Line Regulation: Less than or equal to 0.01% + 3mV

Recovery Time: 100 ns Typical

Ripple Voltage: Peak to peak less than or equal to 2m Vrms; less than or equal to 1mV

Temp. Coefficient: 5mV/Degrees C Typical

B) Constant Current Range (CC):Analog meter indicating u3 Amp for Model 8200 and 0~5Amp for Model 8201.

Adjustable Current Limit: 5 % to 100 %, 0.1A to 3A, Model: 8200
5% to 100%, 0.1A to 5A, Model: 8201

Current Line Regulation: Less than or equal to 0.2% + 3mA

Load Regulation: Less than or equal to 0.2% + 3mA

C) Protection: CC/CV indicating lamp.

Protection against reverse polarity, over voltage, short circuit, overload protection fully adjustable, current limiting and fuse primary protection.
