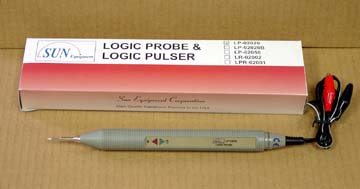

LP-02050: Logic Probe











Features:

The logic probe is ideal for trouble shooting and analysis of logic circuits. It works as a level detector, a pulse detector, a pulse detector, a pulse stretcher, and a pulse memory. Its features include LED indicators, logic Hi/Lo, switch-slectable pulse detection or pulse memory function, and switch-selectable TTL or CMOS circuits.

Specifications:

Max. Input Signal Frequency 20 MHz
Input Impedance 1MW
Operating Supply Range 4V DC min., 18V DC Max.
TTL : Logic "1" (Hi LED) > 2.3
