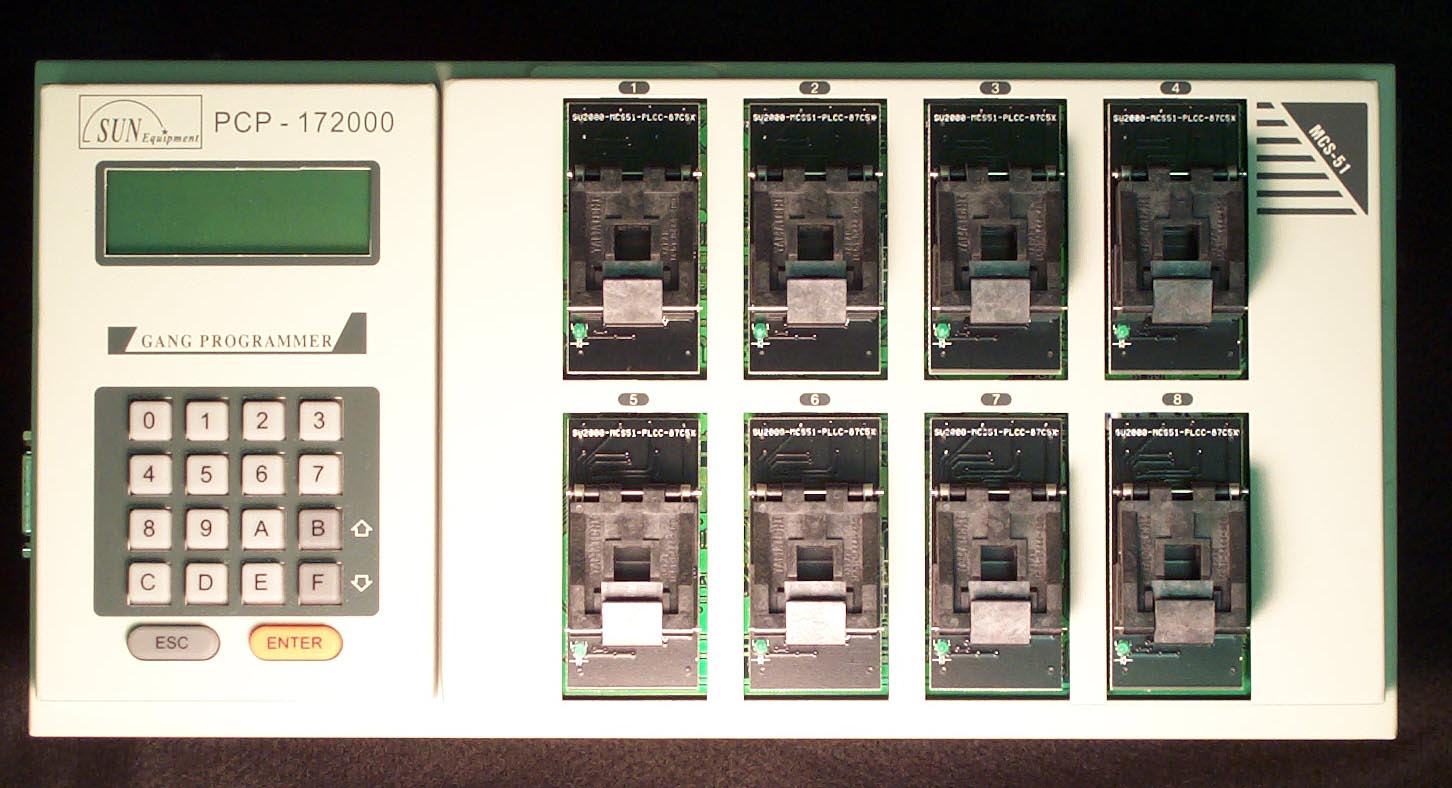

| Parallel Cartridge Programmer: PCP-172000 |
|
|
||
Features
| 1. Small, light, portable and profession design. |
| 2. Support Windows 95 / 98 / 2000 / NT |
| 3. Support low voltage 3.3V ~ 5V devices |
| 4. Support EPROM & FLASH speedy programming function, process a 27C080 only take 90 seconds (Blank Check + Programming + Verify) |
| 5. Automatically detect the device pin insertion and contact check powerful graph showing the situation for device |
| 6. Convenient and efficient printer port connection to any IBM compatible PC, Notebook |
| 7. Support more than 60 manufactures of semiconductors |
| 8. System is upgradable by adding additional modules |
Standard Accessories
| 1. Main Unit |
| 2. Printer Connect Cable |
| 3. Driver software Disk |
| 4. Operation Manual |
| 5. Power Cord |
Optional Accessories
| Cartridge Modules: FLASH, ALTERA, PIC, SEEPROM, PLD, AVR, ST6/7/9, MCS-51, FLASH 16-Bit, FWH series |
| Windows Operating Software |
Physical & Environmental Specifications
| Dimensions: 16 cm x 11 cm x 4.5 cm |
| Weight: 0.5 kg |
| Temperature: + 5 |
