Description

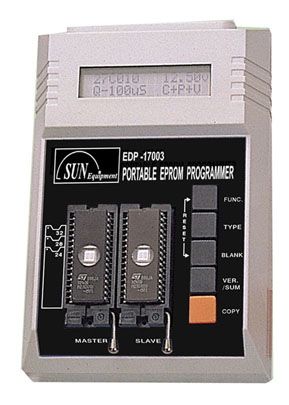

EDP-17003 is specially designed for FLASH EPROM series, it integrates powerful hardware and software to perform at its highest quality . It is the best choice to program EPROM series device.
The most attraction of EDP-17003 is that it follows 4T product policies, i.e. Light, Thin, Short, Tiny.
Support Windows 95/ 98/ NT/ 2000 ME

Features

• Small, portable, light & usable with batteries
• Two operation modes: Stand-alone and PC mode:
  1. Stand-Alone Mode: 5 function keys including Functions, Type, Blank Check, Verify & Check Sum, and Program
  2. PC based mode: transmit data via  a USB port, Functions include Type/Read/ Blank Check/ Program/ Verify/ Erase/ Disk/ Help/ Process/ Parameter

• LCD display: 16 x 2 characters
• Programmable flow charts, Voltage Pulse Width and other parameter
• Powerful HEX/ASCII memory and fusemap, test library and full screen edit
• File format supported: Binary code, Intel HEX  & 80/86 HEX

Standard Accessories

• main unit
• USB cable
• DC 12V/500mA power adapter
• CD ROM includes manual and Driver

Optional Accessories

PLCC, VSOP, TSOP adapters

Physical & Environmental Specifications

Dimension: 16 × 11 × 4.5cm
Weight: 0.5kgs
Temperature: +5°C to +45°C
Humidity: < 90% noncondensing
Altitude: < 5000m
