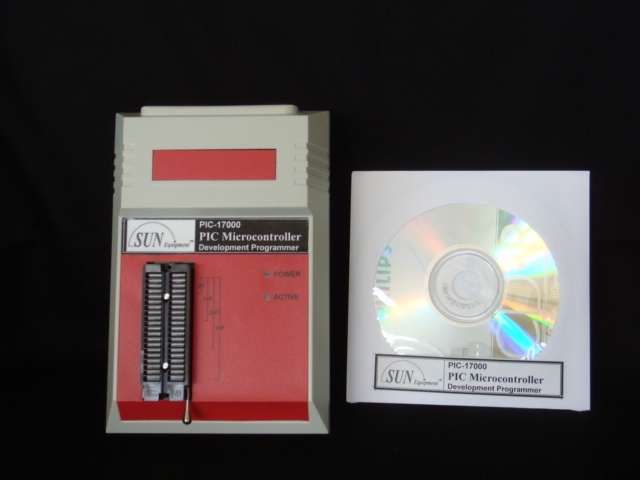

PIC Microcontroller Development Programmer: PIC-17000







  1. Low-cost development kit supports PIC 14000, PIC 16/17 MCUs
  2. Operates with PC compatible host system running Windows under MPLAB environment
  3. up-to-date software available on Microchip website
  4. Reads, Programs, Verifies EPROM and EEPROM program and data memory
  5. Reads, Programs, Verifies all configuration bits
  6. Programs, Verifies address range
  7. Displays, Edits, and Transfers device contents to/ from the programmer unit
  8. MPASM Assembler translates assembler source codes to object codes for all PIC 16/17 devices
  9. MPLAB SIM Window-based simulator designed to model operation of all PIC 16/ 17 Microcontrollers

Standard Accessories:

  1. Main Unit
  2. RS-232 Cable
  3. Power Adaptor
  4. CD-ROM

Optional Accessories

Full range adaptors


1. Dimensions: 16 x 11 x 4.5 (cm)

2. Weight: 0.5 kg

3. Temperature: +5°C to +45°C

4. Humidity: to 90% noncondensing

5. Altitude: to 5000 m.

Supported Devices

PIC12C508, PIC12C508A, PIC-12C509, PIC12C509C, PIC12CE518, PIC12CE519, PIC12F629, PIC12C671, PIC12C672
PIC12CE673, PIC12CE674, PIC12F675


PIC16C505, PIC16C52, PIC16C54, PIC16C54A, PIC16C54B, PIC16C54C, PIC16HV540, PIC16C55, PIC16C55A, PIC16C554, PIC16C558,
PIC16C56, PIC16C56A, PIC16C57, PIC16C57C, PIC16C58A, PIC16C58B, PIC16C61, PIC16C62, PIC16C62A, PIC16C62B, PIC16C620,
PIC16C620A, PIC16C621, PIC16C621A, PIC16C622, PIC16C622A, PIC16CE623, PIC16CE624, PIC16CE625, PIC16CE627, PIC16CE628,
PIC16C63, PIC16C63A, PIC16F630, PIC16C64, PIC16C64A, PIC16C642, PIC16C65, PIC16C65A, PIC16C65B, PIC16C66, PIC16C662,
PIC16C67, PIC16F676, PIC16C71, PIC16C710, PIC16C711, PIC16C712, PIC16C715, PIC16C716, PIC16C717, PIC16C72, PIC16F72,
PIC16C72A, PIC16C73, PIC16F73, PIC16C72A, PIC16C73, PIC16F73, PIC16C73A, PIC16C73B, PIC16C74, PIC16F74, PIC16C74A,
PIC16C74B, PIC16C745, PIC16C76, PIC16F76, PIC16C765, PIC16C77, PIC16F77, PIC16C770, PIC16C771, PIC16C773, PIC16C774,
PIC16C781, PIC16C782, PIC16F818, PIC16F819, PIC16F83, PIC16C84, PIC16F84, PIC16F84A, PIC16F870, PIC16F871, PIC16F872,
PIC16F873, PIC16F873A, PIC16F874, PIC16F874A, PIC16F877A, PIC16C923, PIC16C924, PIC16C925, PIC16C926,

PIC17C42, PIC17C42A, PIC17C43, PIC17C44, PIC17C752, PIC17C756, PIC17C756A, PIC17C762, PIC17C766

PIC18C242, PIC18F242, PIC-18F248, PIC18C252, PIC18F252, PIC18F258, PIC18C442, PIC18F442, PIC18F448, PIC18C452, PIC18F452,
PIC18F458, PIC18C658, PIC18C858
