Digital Multimeter |
|
DMM-120 |
|
$20.00 |
| DCV: |
600V |
| ACV: |
600V |
| DCA: |
2A |
| Resistance: |
2MW |
| Transistor, Battery, Diode Test |
|
3 1/2 digits LCD display |
| 1.2% basic accuracy |
| Optional holster | |
|
|
|
Digital Multimeter |
|
DMM-125 |
|
$44.00 |
| DCV: |
600V |
| ACV: |
600V |
| DCA: |
10A |
| ACA: |
10A |
| Resistance: |
3.2MW |
| Continuity, Diode Test |
|
3 1/2 digits LCD display |
| 1.2% basic accuracy |
| Optional holster | |
|
|
|
Digital Multimeter |
|
DE-1100 |
|
$19.00 |
| DCV: |
1000V |
| ACV: |
750V |
| DCA: |
10 A |
| ACA: |
10 A |
| Resistance: |
20MW |
| Transistor, Continuity, Diode Test |
|
3 1/2 digits LCD display | |
|
|
|
Digital Multimeter |
|
DMM-9839 |
|
$65.00 (was $129.95) |
| DCV: |
600V |
| ACV: |
600V |
| DCA: |
20A |
| ACA: |
20A |
| Resistance: |
40MW |
| Capacitance: |
40µF |
| Frequency: |
600kHz |
| Continuity, Diode Test, Data Hold, Autorange |
|
3 3/4 digit LCD display | |
 |
|
UHF Attenuator |
|
Model |
087E-2 |
|
$399 (was $499) |
|
Impedance |
75W |
|
Frequency Response |
DC ~ 950MHz |
|
Max Attenuation |
61dB |
|
Step Range |
1,2,3,5,10,20,30db |
|
Over All Accuracy |
+ 2dB |
|
Insertion Loss |
less than 1dB |
|
Max. VSWR |
1.3 |
|
Max. Input Power |
0.5 Watt |
|
Connector Type |
N Type or BNC Type |
|
Power Supply |
AC 115/230V, 50/60Hz |
|
Dimension |
160(W) x 83(H) x 260(D) mm |
|
Weight |
1.9kg | |
 |
|

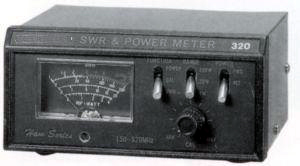

Radio Power Meter |
|
Model No. |
320 |
|
$69.95 (was $89.95) |
| Frequency Range |
130 ~ 520MHz |
| Measurable Power Range |
0~200w |
| Power Range |
4w/20w/200w |
| Power Measurement Accuracy |
|
|
4w RANGE +10% (on full scale)
20w RANGE +5% (on full scale)
200w RANGE +5% (on full scale) |
| Minimum Power for SWR Measurement |
4w |
| SWR Measurement |
1.0 ~ infinity |
| Insertion Loss |
Less than 0.2dB |
| Input/Output Impedance |
50 W |
| Input/Output Connection Plugs |
SO ~ 239 |
| |
|
|
 |

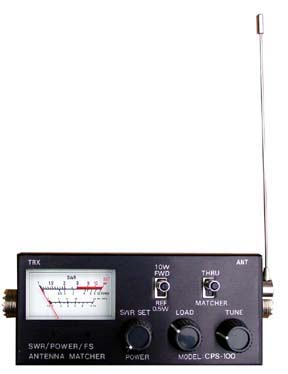

| SWR/ANT. Field Strength Indictor / RF Power Meter |
|
Model No. |
CPS-100 |
|
$29.00(was 39.00) |
| SWR |
1:1 to 1:3 |
| RF Power |
0.5~10W and 0.5~100W Switchable |
| Accuracy |
SWR: +- 5%
Power: +- 10% |
| Impedance |
52 Ohm |
| Meter Sens |
200uA |
| Freq. Range |
1.7 to 30MHz | |
 |
|

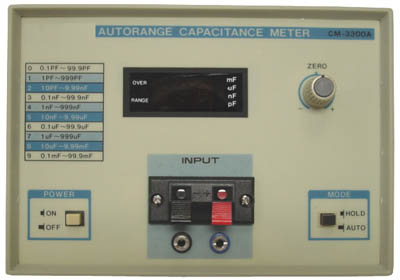

Autorange Capacitance Meter |
|
Model No. |
CM-3300A |
|
$99 (was $139) |
| Range |
10 ranges, fully automatic with range HOLD. |
|
Full scale value from 99.9 pF to 99.9mF. |
|
AUTO: between 79 and 999 counts. |
|
HOLD: between 0 and 999 counts. |
| Resolution |
0. I pF on the lowest range and 0. 1% of full scale on all ranges |
| Accuracy |
|
|
0.5% of full scale ± 1digit to 99.9uF |
|
1.0% of full scale ± 1digit to 99.9mF | |
 |
|
Stereo Modulator |
|
Model No. |
AG-2011A |
|
$349 (was $549) |
RF SECTION
Carrier Frequency: 98MHz ± 2MHz.
Output Voltage: 10mV, 1mV, 0.1mV With Switch Selector
Output Impedance: 75 W (Unbalanced)
Frequency Deviation: Pilot: 7.5KHz (10%) , Composite: 0 ~75KHz Adjustable (0 ~ 100%)
COMPOSITE SIGNAL
Pilot Signal: 19KHz ± 2Hz output 0.8 Vrms
Internal Modulation: 400Hz, 1KHz ± 1% (Switch Selector) output 1Vrms.
Distortion: Less than 0.5%
L-R Separation: Over 50dB
EXTERNAL MODULATION
Frequency Range 50Hz ~ 15KHz
Pre-Emphasis: 50, 75 u S and off
L-R Separation (L-R): >45dB 100Hz ~3KHz, >35dB 50Hz ~15KHz
Output Voltage: 0 ~ 1 Vrms Adjustable
Subcarrier Leakage: Less than -40dB
Pilot Signal Output: 100mVrms
SCA Signal Output: 67KHz ± 3KHz 100mVrms |
 |
|
SWR/ Ant. Field Strength Indicator |
|
Model No. |
SWR-1 |
|
$15 (was $24) |
SWR: 1:1 to 1:3
Accuracy: +- 5%
Impedance: 50 ~52 W
Meter Sensi.: 200uA
Freq. Range: 1.7 ~150 MHz
Ant. 1 set stainless steel bar |
 |
|
SWR Meter |
|
Model No. |
SWR-2T |
|
$11 (was $19) |
SWR: 1:1 to 1:3
Accuracy: +- 5%
Impedance: 52 W
Meter Sens. 200uA
Freq. Range 1.7 to 30MHz |
| |
|
SWR Meter |
|
Model No. |
SWR-2P |
|
$12 (was $22.95) |
SWR: 1:1 to 1:3
RF Power: 0.5~10W
Accuracy:
SWR: +- 5%
Power: +- 10%
Impedance: 52 W
Meter Sens. 200uA
Freq. Range 1.7 to 30MHz |
 |
Function Generator, 10 MHz
Model No.: GFG-8210
$325 (was $399)
Details |
|
|
Oscilloscope , 20 MHz
Model No.: GOS-622G
$375 (was $460)
Details |
