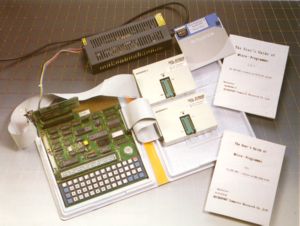

EDS-8821
8-bit Micro-programmer (II)
(Driver routine and User's Guide are included.)
Hardware Specification
- Micro-programmer, No. EDS 8821
- 50-pin IDC flatcable
References &
Software
- Micro-programmer user's Guide included.
- This system can be used with an IBM PC or compatible.
- In addition, it can be used with the MTS-8088 V3.4 BIOS without a disk drive.
The X command on the MTS-8088 can be used to execute these programs directly.
- BGEP.EXE: E(E)PROM programming routine.
- EP1CFG.BGC: Save current EPROM's type & address.
- BG48P.EXE: The 8048 programming routine.
- EP2CFG.BGC: Save current 8048's type and address.
- BGTM.EXE: SRAM testing routine.
- HEX2BIN.EXE: Utility to convert Hex files to Bin files.
EDS-8820 8088
Single Board Microcomputer
Hardware
Specification
- 8088-2 CPU
- 8K SRAM
- 2K-64K ROM (selectable)
- 8254/8259/8255 PCI 50-pin Interface Port
- 62-pin PC-compatible Interface
References
& Software
Refer to the User's Guide for details about the single board microcomputer.
