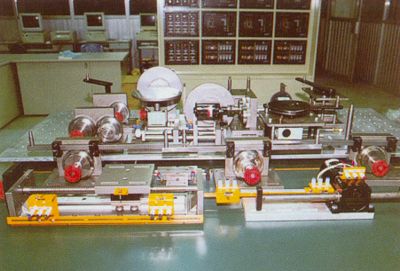

1. 300mm SCREW ROD SLIDER MECHANISM
a. TRAVEL DISTANCE: 300mm
b. PITCH: 4mm/Revolution.
c. DIMENSION: 500mm (W) x 140mm (D) x 100mm (H).

2. CONVEYER MECHANISM
a. ADJUSTABLE
b. DIMENSION: 700mm (W) x 180mm (D) x 100mm (H).

3. INDEXING MECHANISM
a. TRAVEL DISTANCE: 200mm (diameter) x 150mm (H).
b. HORIZONTAL OR VERTICAL
c. SPEED RATIO: 1:90.

4. AUTOMATIC DOOR MECHANISM
a. TRAVEL DISTANCE: 310 mm.
b. PRESSURE SENSING, 2 PIECES.
c. DIMENSION: 400mm (W) x 125mm (D) x 310mm (H).

5. WORM GEAR SPEED REDUCER MECHANISM
a. 60 LIGHT SLOTS STEEL PLATE.
b. ENCODER: A, B PHASE; IO Pulses/Revolution.
c. DIMENSION: 160mm (W) x 175mm (D) x 193mm (H).

6. MAIN SHAFT MECHANISM OF DRILLER, TYPE-B
a. TRAVEL DISTANCE: 125mm.
b. MOTION POWER: PNEUMATIC.
c. LIGHT LOAD STYLE.

7. PHOTOINTERRUPTER
a. PHOTOELECTRIC COMPONENT 2 PIECES.
b. CONCAVE STYLE, STEEL.
c. DIMENSION: 60mm (W)x 55mm (D) x 50mm (H).

8. EXTENSION SHAFT
a. SHAFT SIZE: 50mm (DIAMETER) x 51mm (L), 2 PIECES.
b. MATERIAL: CAST-IRON.
c. DIMENSION: 300mm (W) x 140mm (D) x 100mm (H).

9. I-SHAPE STAND
a. 2 PIECES.
b. DIMENSION: 245mm (W) x 140mm (D) x 95mm (H).

10. PLATE BOARD
a. DIMENSION: 350mm (W) x 140mm (D) x 200mm (H).

11. WEIGHT DETECTION MECHANISM
a. LOAD CELL SENSOR, STEEL.
b. DIMENSION: 170mm (W) x 170mm (D) x 95mm (H).

12. LENGTH DETECTION MECHANISM
a. LVDT SENSOR, STEEL.
b. DIMENSION: 140mm (W) x 40mm (D) x 195mm (H).

13. REFLECTIVE PHOTOELECTRIC SWITCH
a. SENSING DISTANCE: 150mm Max
b. DIMENSION: 70mm (W) x 140mm (D) x 200mm (H).

14. LIMIT SWITCH MECHANISM
a. LIMIT SWITCH: 250V, 2A, 4 PIECES.
b. STEEL
c. DIMENSION: 60mm (W) x 55mm (D) x 50mm (H).

15. PROXIMITY SWITCH MECHANISM
a. SENSING DISTANCE: 4mm
b. ALUMINUM 2 PIECE.
c. DIMENSION: 70mm (W) x 140mm (D) x 200mm (H).

16. CYLINDER OBJECT SAMPLE
a. COPPER, 23mm IN DIAMETER. HEIGHT: 13mm 14mm, 15mm, 16mm, and 17mm 10 PIECES EACH.

17. PNEUMATIC ROBOTICS ARM MECHANISM
a. TRAVEL DISTANCE: 70mm
b. UPPER and LOWER LIMIT SENSORS, 2 PIECES.
c. SUCTION PLATE NOT INCLUDED.

18. MOTOR ROBOTICS ARM MECHANISM
a. TRAVEL DISTANCE: 300mm.
b. SINGLE-PHASE MOTOR.
c. CHUCK NOT INCLUDED.

19. STORAGE RACK MECHANISM
a. STEEL
b. DIMENSION: 400mm (W) x 500mm (D) x 300mm (H).

20. Z-AXIS SCREW ROD MECHANISM
a. TRAVEL DISTANCE: 300mm
b. PITCH: 4mm/Revolution.
c. DIMENSION: 500mm (W) x 140mm (D) x 100mm (H).

21. ELEVATOR MECHANISM
a. 5 STORIES, STEEL.
b. DIMENSION: 450mm (W) x 200mm (D) x 500mm (H).

22. VIBRATORY FEEDER MECHANISM
a. SIZE: 400mm (DIAMETER) x 300mm (H).
b. ADJUSTABLE VIBRATION.

23. ROCKER ARM MECHANISM
a. CAN BE FIXED ON L-SHAPE STAND.
b. DIMENSION: 360mm (W) x 140mm (D) x 170mm (H).

24. PRODUCT MOVING GUIDE MECHANISM
a. DIMENSION: 70mm (W) x 140mm (D) x 200mm (H).

25. GEAR COUPLER MECHANISM
a. COUPLER IS INSTALLED IN GENEVA or ROLLER CAM GEAR.
b. DIMENSION: 70mm (W)x 140mm (D) x 200mm (H).

26. ROTARY TABLE MECHANISM
a. TABLE DIAMETER: 200mm. 15mm ALUMINUM BASE.
b. SHAFT ROTATION RATIO: 10: 1. COUPLER ON INPUT SHAFT.
c. DIMENSION: 200mm (W) x 200mm (D) x l70mm (H).
d. THIS ITEM IS INSTALLED WITH GEAR INDEXING.

27. GENEVA GEAR INDEXING MECHANISM
a. 6 DIVISIONS; 15mm ALUMINUM BASE.
b. COUPLERS ON INPUT and OUTPUT SHAFTS.
c. DIMENSION: 200mm (W) x 100mm (D)x l50mm (H).

28. ROLLER GEAR CAM MECHANISM
a. 6 DIVISIONS; 15mm ALUMINUM BASE.
b. COUPLERS ON INPUT and OUTPUT SHAFTS.
c. DIMENSION: 200mm (W) x 205mm (D) x 240mm (H).
d. OUTPUT SHAFT ROTATES 60 DEGREES PER REVOLUTION OF INPUT.

29. RACK AND PINION (GEAR) MECHANISM
a. RACK GEAR LENGTH: 500 mm; TRAVEL DISTANCE: 300 mm.
b. COUPLERS ON GEAR SHAFTS. 15mm ALUMINUM BASE.
c. DIMENSION: 500mm (W) x 175mm (D) x 175mm (H).

30. RACK AND ONE WAY CLUTCH GEARING MECHANISM
a. RACK GEAR LENGTH: 500mm, TRAVEL DISTANCE: 300mm
b. COUPLER ON GEAR SHAFT. 15mm ALUMINUM BASE.
c. DIMENSION: 500mm (W) x 175mm (D) x 175mm (H).

31. ONE WAY CLUTCH MECHANISM
a. FORWARD DRIVEN (ENGAGED); REVERSE RELEASE.
b. INPUT and OUTPUT COUPLER, 15mm ALUMINUM BASE.
c. DIMENSION: 210mm (W) x 180mm (D) x 140mm (H).

32. RACK AND ONE WAY RATCHET GEARING MECHANISM
a. RACK GEAR LENGTH: 500mm TRAVEL DISTANCE: 300 mm
b. COUPLER ON GEAR SHAFT. 15mm ALUMINUM BASE.
c. DIMENSION: 500mm (W) x 200mm (D) x 175mm (H).

33. ONE WAY RATCHET GEARING MECHANISM
a. FORWARD DRIVEN (ENGAGED); REVERSE RELEASE.
b. INPUT and OUTPUT COUPLER; 15mm ALUMINUM BASE.
c. DIMENSION: 210mm (W) x 160mm (D) x 140mm (H).

34. GEAR SET MECHANISM
a. INPUT/OUTPUT RATIO: 1:2. 15mm ALUMINUM BASE.
b. TWO COUPLERS.
c. DIMENSION: 210mm (W) x 640mm (D) x 140mm (H).

35. CAM MECHANISM
a. RADIUS: 80mm Max, 70mm Mim. 15mm ALUMINUM BASE.
b. INPUT SHAFT/CAM SHAFT RATIO: 10: 1.
c. COUPLER ON INPUT SHAFT.
d DIMENSION: 345mm (W) x 200mm (D) x l90mm (H).

36. CRANK MECHANISM
a. RADIUS: 20 - 100mm, ADJUSTABLE.
b. INPUT/OUTPUT RATIO: 1: 10. 15mm ALUMINUM BASE.
c. COUPLER ON INPUT SHAFT.
d. DIMENSION: 220mm (W) x 140mm (D) x 190mm (H).

37. ROCKING LEVER MECHANISM

38. TOGGLE JOINT MECHANISM
a. TRAVEL DISTANCE: 250maL 15nim ALUMINUM BASE.
b. COUPLER PINS ON INPUT BLOCK AND OUTPUT SHAFT.
c. DIMENSION: 300mm (W) x 150mm (D) x 170mm (H).

39. SLIDING PLATFORM MECHANISM
a. TRAVEL DISTANCE: 300mm Min. CONTROLLED by PROXIMITY SWITCHES..
b. COUPLER PIN ON PLATFORM. 15mm ALUMINUM BASE.
c. DIMENSION: 500mm (W) x 140mm (D) x 90mm (H).

40 EXPERIMENT FLAT BOARD AND STEP SPACERS
a. ALUMINUM ALLOY. 15mm THICK MINIMUM.
b. DIMENSION: 800mm (W) x 600mm (D) x 15mm (H).

(Click here for Detailed Specifications on MT-101090)
