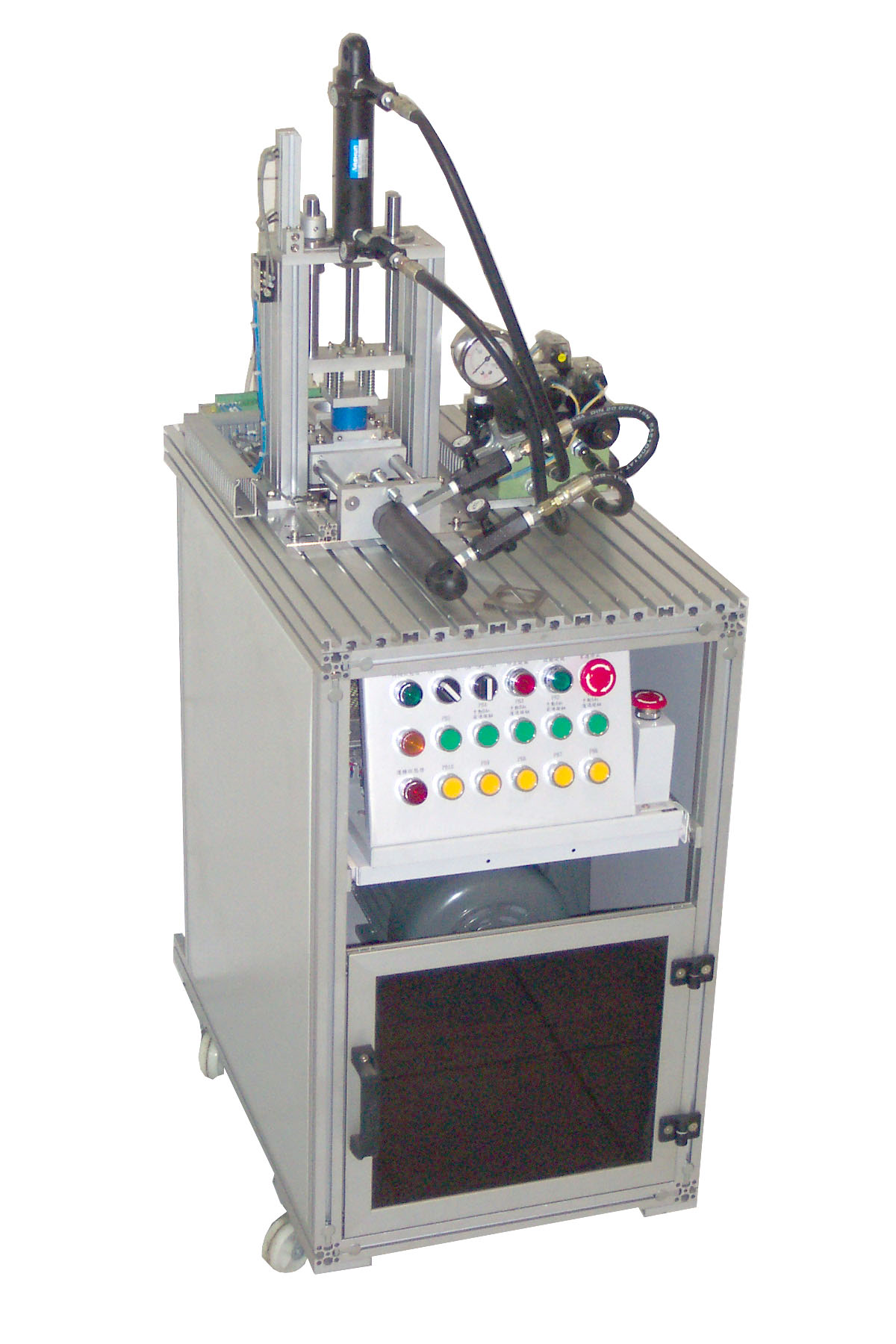

HPS-61005:Hydraulic Press Station



A. Hydraulic Feeding Module
      Oil tank with speed regulator, quick connector, two limit switches.
      Two sliding rods
       Two connection boards affixed on the steel plate to support sliding rods
       Bottom mode
       Front alignment board
       Rear alignment board
       Aluminum sliding base

B. Hydraulic Press Module
      Oil tank with speed regulator, quick connector, two limit switches
      Two sliding rods with linear roller bearing
       Press board
       Bottom steel board (thinkness :
8 mm (0.3")) affixed on the aluminum platform with adjustable distance of 1" in X ang Y directions

C. Hydraulic Power Unit
       Power: AC 110V/ 1HP
       Pump: adjustable, 0 ~ 60 kg/cm^

D. Solenoid Valve Set
       4/3, center Normally Closed , 2 pcs
       DC 24V
       Solenoid valve housing
       Pressure guage (0 ~ 100 Kg/cm^)

E. Control Panel Module
       Control panel size: 23.5" x 9.5" (600 x 340 mm)
       Pushbutton switch x 2

       Selection switch x 2
       Emergency stop switch x 2
       Red, Yellow, and Green indicator, 1 piece each
       DC power supply with the overload protection, DC 24V/5A
       Mitsubishi FX 2N DI 16/ DO 16 PLC controller
       No-fuse breaker
       Emergency power shutdown switch installed next to the control panel

F. Trolley :
Size: 27.5" x 17.75" (700 x 450 mm)
      Material: Steel plate
      Control panel drawer
      Rollers with stopper

1. Introduction to Hydraulic Elements
2. Introduction to Hydraulic Loops, Assembling, and Disassembling
3. Introduction to Sensors
4. Introduction to Electrical Components
5. Mechanism Assembling/ Disassembling
6. PLC Program Design
