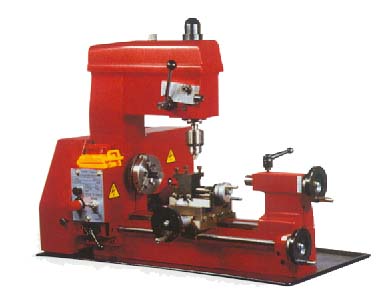

| Multi-Function Machine: LM-35512 |
|
Specifications
| Cutting | |
| Swing Over Bed | 125 mm |
| Distance between Centers | 180 mm |
| Spindle Taper | MT #1 |
| Tailstock Taper | MT #1 |
| Spindle Speed | 0 ~ 2500 rpm |
| Range of Threads | Metric 0.4 ~ 1.25 mm ( 8 thread pitches) |
| Imperial 16 ~ 40 TP (8 thread pitches) | |
| Drilling & Milling | |
| Max. Drilling/ Milling Capacity | 6 mm |
| Travel of Drilling/ Milling Spindle | 28 mm |
| Spindle Speed | 0 ~ 2500 rpm |
| T-slot | 8 mm |
| Output Power | 250W |
| Net/ Gross Weight | 20/30 Kgs |
| Packing Size | 530 x 330 x 295 mm |
Optional Accessories
| Quick Vice |
| Face Plate |
| Rolling Center |
| Tailstock Chuck |
| 5-pc Cutter Set |
 |
 |
