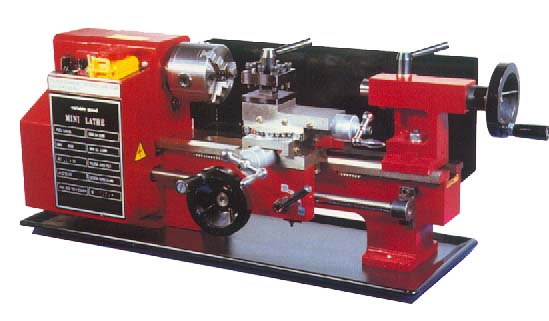

| Bench-Top Metal Cutting Lathe: CL-35518-200/ CL-35518-300 |
|
Specifications
| Swing Over Bed | 180 mm |
| Distance Between Centers | 200 mm (CL-35518-200) |
| 300 mm (CL-35518-300) | |
| Hole thru Spindle | 20 mm |
| Spindle Taper | MT #3 |
| Tailstock Taper | MT #2 |
| Spindle Speed | Low Range: 0~1100 rpm |
| High Range: 0~2500 rpm | |
| Output Power | 250 W |
| Range of Threads | Metric 0.4 ~2.0 mm ( 10 thread pitches) |
| Imperial 12~ 52 TPI (8 thread pitches) | |
| Net/Gross weight | 33/36 kgs |
| Packing Size | 670 x 330 x 330 mm |
Standard Accessories
| ø80 mm three jaw chuck |
| Dead Center MT #2 |
| Gear set |
Optional Accessories
 |
11-pc Cutter Set |
 |
6-pc Cutter Set |
 |
5-pc Cutter Set |
 |
Face Plate ø160 mm |
 |
Steady Rest |
 |
Follow Rest |
 |
2-pc Cutter Set |
 |
4-jaw chuck ø 80 mm |
 |
Quick change cutter rest |
 |
Tailstock chuck |
 |
Lathe dog |
 |
Spindle Center |
 |
Rolling Center |
 |
 |
