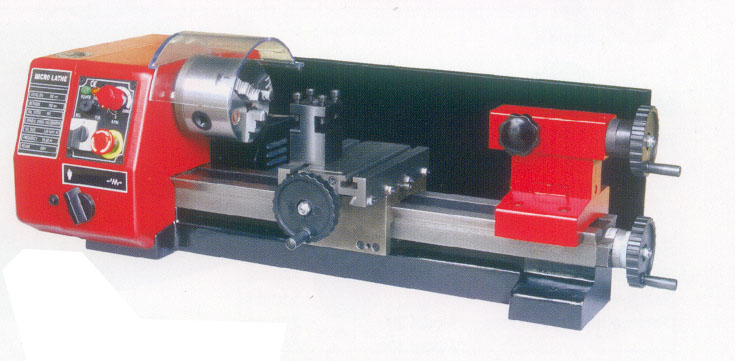

| Bench-Top Metal Cutting Lathe: CL-35515 |
|
Specifications
| Swing Over Bed | 140 mm |
| Distance Between Centers | 250 mm |
| Hole thru Spindle | 10 mm |
| Spindle Taper | MT #2 |
| Tailstock Taper | MT #1 |
| Spindle Speed | Low Range: 100~2000 rpm |
| Output Power | 150 W |
| Range of Threads | Metric 0.5 ~1.25 mm (5 thread pitches) |
| Imperial 16~ 24 TPI (5 thread pitches) | |
| Net/Gross weight | 23/32 kgs |
| Packing Size | 680 x 345 x 305 mm |
Standard Accessories
| ø80 mm three jaw chuck |
| Dead Center MT #1 |
| Wrench set |
| Oil can |

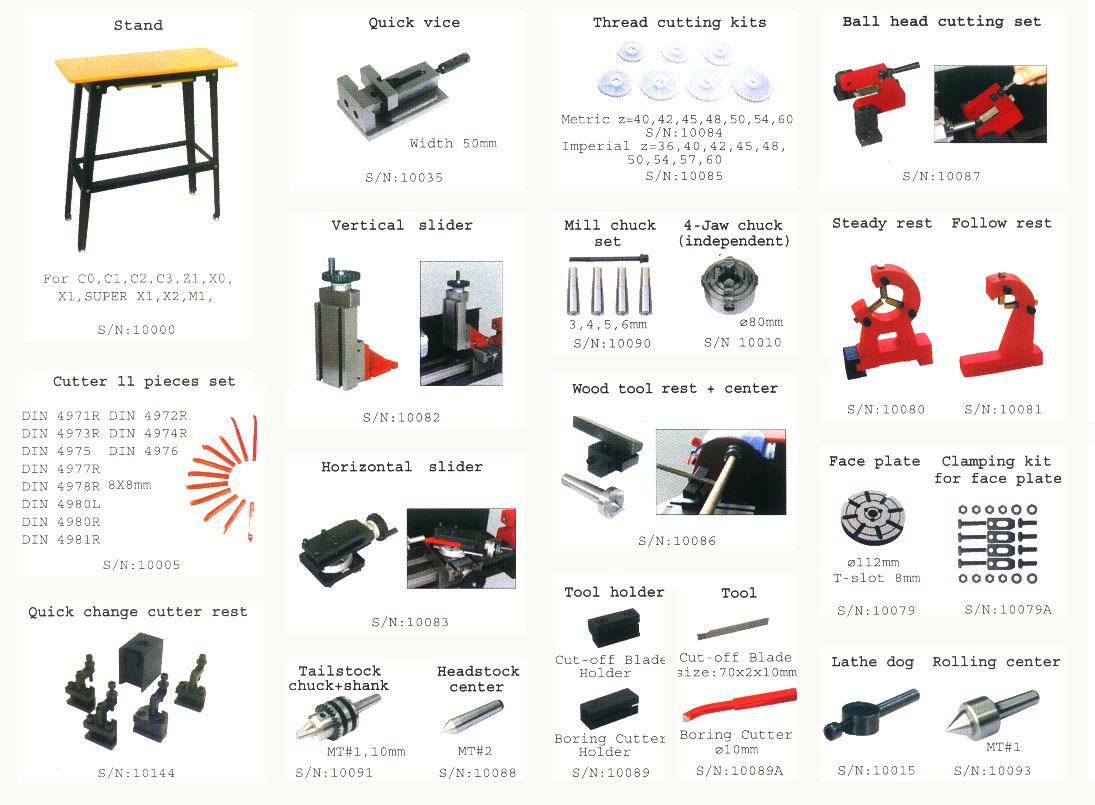

Optional Accessories
 |
 |
 |
