Features

* Clear cast Acrylic hydraulic components will help students easily understand hydraulic principles.
* Students can actually see and feel the pressure and flow directions inside the components.
* This system is one of the best learning tools for students to fully understand the principles of hydraulic system

Specifications

Hydraulic Power Units
* Clear cast Acrylic tank, 14 liters
* Electric motor: 1 HP, 3 phases
* Operating pressure: 10 kg/cm^2
* Flow rate: 1.7 l/min
* Pressure relief valve
* Pressure gauge
* Oil refill port
* Pump control unit

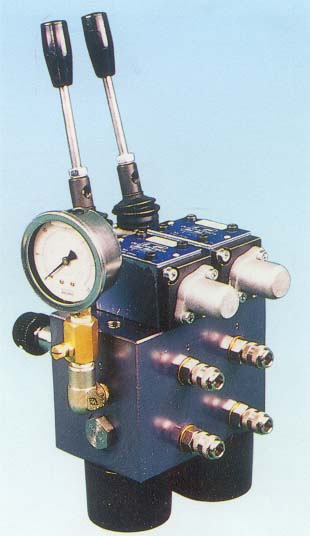

Hydraulic Control System
* Pressure relief valve 1 pc
* Pressure gauge 1 pc
* 4W/2P directional valve, manual-operated: 2 pcs
* Faster connector: 6 pcs

Acrylic Hydraulic System
* Direct pressure relief valve
* Direct pressure relief valve, pilot-operated
* Pressure reducing valve
* Flow control valve
* Orifice valve
* Throttle valve with a check valve inserted
* Pressure compensated throttle valve, 2 orifices
* Check valve
* Single pilot-operated check valve
* 2W/2P valve, manual control
* 3W/2P valve, manual control
* 4W2P valve, manual control
* 4W/3P valve, manual control
* Shuttle valve
* Single-Acting cylinder
* Pressure counterbalance valve
* Double-Acting cylinder with buffer inserted
* 5W/2P directional valve, pilot-operated
* Piston pressure relief valve
* Pressure relief valve, external pilot-operated
* Check valve, double pilot-operated
* Distribution valve
* Pressure compensated throttle valve, three orifices
* Rectifier valve
* Vane pump
* Gear pump
* In-line oscillating pump
* Vane oscillating pump
* Pressure gauge
* Piston accumulator
* Gas-loaded accumulator with separator
* Sequence valve
* 3W/2P single-solenoid valve
* 4W/2P single-solenoid valve
* 4W/2P double-solenoid valve
* 4W/3P double-solenoid valve
* 3-way valve
* 4-way valve
* PU tubes
