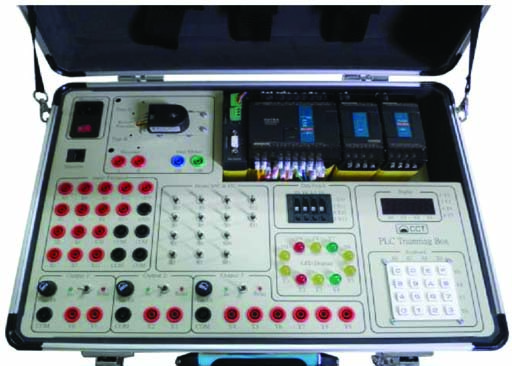

PLC Analog Temperature Control Trainer: PLC-1007 |
Features:
- Portable Aluminum trimmed carrying case with detachable upper and lower lids.
- Simulated input switch: two-stage, with push button and switch functions.
- 14-channel digital input: Dual insulated binding posts and toggle switches. Light coupling protection interface.
- 10-channel digital output: Dual insulated binding posts, solid state transistor or relay switching. Fuse short circuit protection.
- Mixed Analog Input/Output Module: with 2-channel 14-bit analog output, as well as 4-channel 14 or 12-bit analog input.
- Temperature Expansion Module: 6-point, PT-100 or PT-1000, temperature sensing input.
- Communication Expansion Module: Ethernet, RS-232, and RS-485 ports.
Application:
- Marquee / traffic light module.
- 4-digit thumb switch input module.
- 4-digit display module, with BCD decoding circuit.
- Keyboard switch input module.
- Stepper motor module, with 200 pulses per rotation encoder output.
Optional Item: PLC-10A10
Features:
- Thermocouple temperature sensing element directly contact the heater. The highest accuracy measurement is obtained without intermediate interference.
- Corresponding thermocouple temperature transmitter, 4 ~ 20mA output, can be used with various control modules.
- Solid state single-phase power regulator: 50/60Hz, the output power of up to 100%.
- Overheat protection switch makes operation safer.
- 4mm L-type copper connection terminal block.
- Compatible modular seat with 35mm aluminum rails for convenient storage and setup.

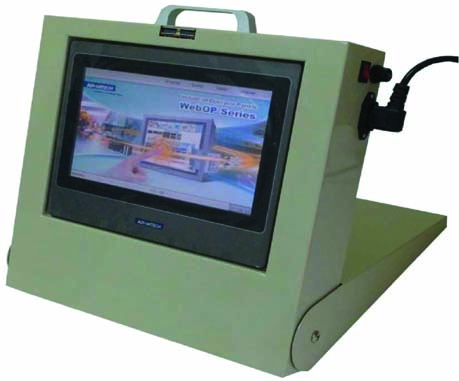

Optional Item: SUI-1001
Features:
- Stand alone steel frame/case, chassis swirl 270°.
- Power Supply: AC100 ~ 240V, fuse protection.
- 64K full-color 10.1" LCD touch screen.
- ARM9-based CPUs 200MHz and 128MB flash memory.
- Supports RS-232, RS-485, RS-422 and Ethernet communication ports.
- Built-in USB Host and USB Client serial port.
- Memory card interface.
