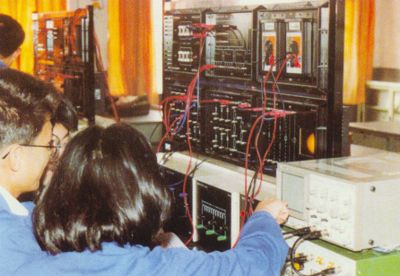

PET-101700: Power Electronics Lab

Features

1. This device includes some basic experiment units and can be expanded to the advanced one. Modular design makes it easy to use and maintain.

2. Each experiment unit consists of several module boards. All Input and output signals, control flows and wirings are shown on the module boards.

3. Circuit diagrams, or block diagrams, are silk-screen printed on the module board.

4. All the test points and connection terminals are brought out on the front for easy access and measurement,

5. Connection terminals are standard 4mm diameter jacks.

6. Main panel frame (stand) is molded, specially treated and painted for long-lasting and beautification.



Experiments
  1. Single-Phase, Half-Wave Rectifier Circuit
  2. Single-Phase, Full-Wave Rectifier Circuit
  3. Single-Phase, Half-Wave Controllable Rectifier
  4. Single-Phase, Full-Wave Controllable Rectifier
  5. Single-Phase, Half-Wave AC Regulation Circuit
  6. Single-Phase, Full-Wave AC Regulation Circuit
  7. Three-Phase, Half-Wave Rectifier Circuit
  8. Three-Phase, Full-Wave Rectifier Circuit
  9. Three-Phase, Half-Wave Controllable Rectifier
  10. Three-Phase, Full-Wave, Half-Cycle Rectifier
  11. Three-Phase, Full-Wave, Full-Cycle Rectifier
  12. Three-Phase, Half-Cycle AC Power Supply Regulation Circuit
  13. Three Phase, Full-Cycle AC Power Supply Regulation Circuit
  14. Automatic Voltage Regulation (AVR) Circuit
  15. Temperature Control Circuit
  16. DC Wave Chopping Circuit
  17. Electromagnetic Stove Control Circuit
  18. Photoelectric Control Circuit
  19. Voltage To Frequency (V/F) Converter Circuit
  20. Frequency to Voltage (F/C) Converter Circuit
  21. Single-Phase Frequency Converter Circuit
  22. Uninterrupted Power Supply (UPS) System
  23. Three-Phase Induction Motor Control Using Frequency Inverter
  24. Motor Speed Monitor Circuit
  25. Digital to Analog (D/A) Converter Circuit
  26. Analog to Digital (A/D) Converter Circuit
  27. Step Motor Control
(Click here for Detailed Specifications on PET-101700)
