Digital Analog Circuits Lab

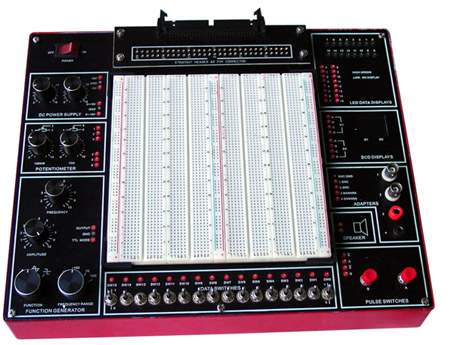

DAC-457000 : Digital-Analog Circuits Lab

Specifications:

1. SOLDERLESS BREADBOARD: AD-22

Interconnected with 2712 tie points nickel plated contact, fitted all DIP sizes and all components with lead and solid wire AWG #22-30 (0.3 ~ 0.8mm). It can be changed and replaced for different purpose and can be connected with demonstration panel. Therefore, it is very convenient for both teachers and students.

2. DC POWER SUPPLY:
(A) Fixed DC output: +5V, IAMP.
(B) Fixed DC output: -5V, 300m AMP.
(C) Variable DC output: 0V to + 15V, 1 AMP.
(D) Variable DC output: 0V to - 15V, 1 AMP.

3. POTENTIOMETERS:
(A) Variable resistor VR1 =1 K (B),
(B) Variable resistor VR2 = 100K (B)

4. FUNCTION GENERATOR:

(A) Frequency range:1 Hz ~ 10Hz, 10Hz ~ 100HZ, 100HZ ~ 1 KHz, 1 kHz ~ 10KHZ, 10KHz ~ 100KHz
(B)Amplitude: Sinewave output: 0 ~ 8 Vpp variable
                         Triangle wave output: 0 ~ 6 Vpp variable
                         Square wave output 0 ~ 8 Vpp variable
                         TTL mode output: 5 Vpp

5. 16 BITS DATA SWITCHES:
16 pcs of toggle switches and corresponding output point. When switch is set at "down" position, the output is LO level; contrarily, it is to be HI level while setting at "up" position.

6. SPEAKER: 2-112 inch diameter, 8 Ohm/0.25W to be used for load.

7. FOUR CHANNEL ADAPTER:

Both of the two banana sockets' and two BNC jacks' point tips are changeable. It is suitable for the station to be connected with peripherals.

8. TWO DIGITS OF SEGMENT LED DISPLAY:

9. TWO PULSE SWITCH (WITH 2 SETS OF OUTPUT):
2 pcs of pushbutton contain switches debouncer for eliminating the bounce caused by switch from "open" to "close" or from close" to "open" position.

10. 16 BITS LED DISPLAY:
16 red LED's separate input terminals. The LED will be lighted up when input is at "Hi level", and it will be turned off when it is at no input or at "LO level".

11. UNIVERSAL CONNECTOR FIXED HOLDER:
It reserves universal connector fixed holder on the panel in order to be connected with various universal connectors, which are available as below:
Optional Accessories
.(1) UC-01 :Card edge connector 2.54mm 62pin
.(2) UC-02: RS-232 connector 25 pin D sub connector, male & female
.(3) UC-03: Straight header 60 pin.
.(4) UC-04: Card edge connector 3,96mm 28 pin

12. STANDARD ACCESSORIES:
(1) Power cord
(2) Pin: 6pcs
(3) Breadboard, 2820 tie points
(3) User manual

13. DIMENSIONS: 250 x 95 x 325 mm (W x H x D)

14. WEIGHT. (4.3kg)
