Features:
|
| |
* Internal hardware
operation of RFID can be observed through experiments. |
| |
* Students will
have a keen understanding of transmission protocols such as Anticollision
and ISO 15693 |
| |
* API application
programming can be applied to various fields |
| |

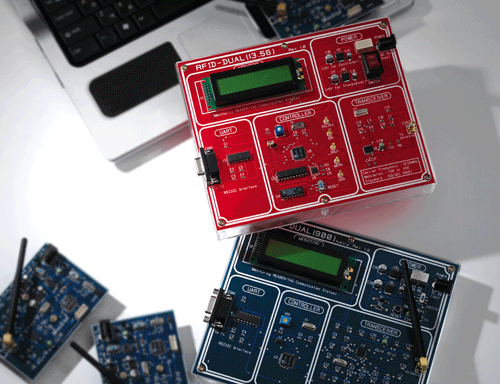

* Dual experiment
modules, (13.56 MHz using Passive Tag, and 915 MHz using Active Tag) |
| |
* Comprehension
of basic principle of RFID |
| |
|
| |
Specifications: |
| |
* Frequency: 13.56
MHz (Module 1), 915 MHz (Module 2) |
| |
* Protocol: ISO
15693 (13.56 MHz only) |
| |
* Type: Vicinity
Card (13.56 MHz), Module (915MHz) |
| |
* Field Range: 3
cm (13.56 MHz), 2 m (915 MHz) |
| |
* PC Interface:
RS232 |
| |
|
| |
Components: |
| |

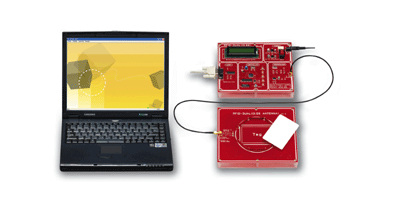

Module 1 (13.56
MHz) |
|
| |
|
Reader: 13.56 MHz,
1 pc |
| |
|
Tag: Vicinity Card,
3 pcs |
| |
|
PC Interface: RS-232C,
1 pc |
| |
|
Antenna Cable: RF
cable, 1 pc |
| |
|
AC adaptor: 9 VDC,
1 pc |
| |
|
Antenna of Reader:
13.56 MHz, 1 pc |
| |
|
| |

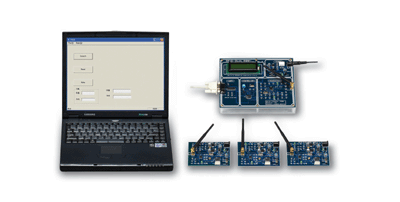

Module 2 (915 MHz) |
|
| |
|
Reader: 915 MHz, 1 pc |
| |
|
Tag: Module, 3 pcs |
| |
|
PC Interface: RS-232C, 1 pc |
| |
|
AC adaptor: 9 VDC, 1 pc |
| |
|
Antenna of Reader: 915 MHz,
1 pc |
| |
|
Antenna of Tag: 915 MHz, 3 pcs |
| |
|
| |
|
| |
* User's Manual,
Program CD, and Carrying case are included |
| |
|
| Experiments: |
|
| |
Part I: Introduction
to RFID technology |
| |
* Explanation of
basic theories of RFID |
| |
* Hardware configuration |
| |
* Hardware installation |
| |
* Basic operation
experiment |
| |
|
| |
Part II RFID
protocol |
| |
* Packet configuration |
| |
* Anticollision |
| |
* CRC algorism |
| |
* Demo program activation |
| |
* Experiment of
RFID commands |
| |
* Experiment of
packet analysis |
| |
* Transmission protocol
programming |
| |
|
| |
Part III API
application programming |
| |
* Introduction to
API |
| |
* Experiment of
API example programming |
| |
* Experiment of
API application programming |
