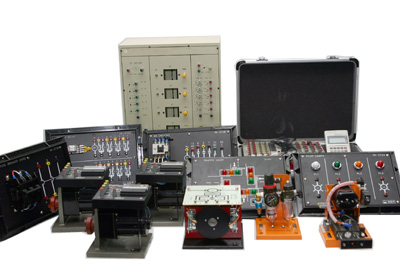

1. THIS DEVICE INCLUDES BASIC EXPERIMENT UNITS AND CAN BE EXPANDED TO THE ADVANCED CONTROL SYSTEM. COMPACT DESIGN MAKES IT EASY TO BE HANDLED IN A LAB, PARTICULARLY, FOR SCHOOLS WITH LIMITED LAB SPACE.

2. CIRCUIT DIAGRAMS AND/OR CHARTS ARE SILK-SCREEN PRINTED ON THE EXPERIMENT DEMO CARD. EXPERIMENT INSTRUCTIONS ARE EASY TO FOLLOW.

3 .ALL THE TEST POINTS AND CONNECTION TERMINALS ARE BROUGHT OUT ON THE FRONT FOR EASY ACCESS AND CONNECTION

1. MOTOR START, STOP, AND OVERLOAD CONTROL

2. MOTOR CONTROL IN TWO PLACES

3. 3f MOTOR FORWARD/REVERSE CONTROL

4. MOTOR PRIORITY CONTROL

5. MOTOR CONTINUOUS AND PULSE OPERATION CONTROL

6. MOTOR AUXILIARY START/STOP CONTROL

7. MOTOR Y-D START CONTROL

8. DELAY TIMER RELAY CIRCUIT

9. MOTOR OVERLOAD WARNING CIRCUIT

10. MOTOR FORWARD/REVERSE WITH YD START CONTROL

11. AUTOMATIC WATER PUMP WITH AUXILIARY CONTROL

12. AUTOMATIC STARTING CONTROL OF A STANDBY MOTOR

13. MOTOR START/STOP/INTERRUPTION MEMORY CIRCUIT

14. COUNTER CIRCUITS

15. COUNT DOWN / UP COUNTER CIRCUITS

16. COUNTER AND TIMER EXTENSION CIRCUIT

17. CAR WASH CONTROL CIRCUIT

18. EMERGENCY STOP AND POWER INTERRUPT PROTECTION

19. LIGHTS CONTROL (I)

20. LIGHTS CONTROL (II)

21. LIGHTS CONTROL (III)

22. LIGHTS CONTROL (IV)

23. LIGHTS CONTROL (V)

24. TRAFFIC LIGHT CONTROL (I)

25. TRAFFIC LIGHT CONTROL (II)

26. PNEUMATIC CYLINDER WITH MAGNETIC REED SWITCH

27. PNEUMATIC CYLINDER WITH LIMIT SWITCH

28. PNEUMATIC CYLINDER WITH PROXIMITY SWITCH

29. PHOTOINTERRUPTER AND COUNTER CONTROL (I)

30. PHOTOINTERRUPTER AND COUNTER CONTROL (II)

31. ROTARY ENCODER AND MOTOR CONTROL

32. 2-FLOOR ELEVATOR CONTROL (I)

33. 2-FLOOR ELEVATOR CONTROL (II)

34. 3-FLOOR ELEVATOR CONTROL (I)

35. 3-FLOOR ELEVATOR CONTROL (II)

36. 4-FLOOR ELEVATOR CONTROL (I)

37. 4-FLOOR ELEVATOR CONTROL (II)

38. 5-FLOOR ELEVATOR CONTROL (I)

39. 5-FLOOR ELEVATOR CONTROL (II)

40. ROTARY ENCODER AND MOTOR SPEED DETECTION CONTROL

Hardware Specifications

A. MAIN PANEL FRAME

B. DUAL DC POWER SUPPLY

(1) VOLTAGE: 0-30V.

(2) CURRENT: 1A.

(3) CONSTANT VOLTAGE AND CONSTANT CURRENT

(4) OVERLOAD PROTECTION.

C. MODULE BOARD

1. USING COMBINATION OF SMALL COMPONENT AND MODULE BOARDS FOR EXPERIMENTS.

2. BOARD SIZE: Type-A: .80m x 1.50m, Type-B: 1.6m x 1.6m, WHITE COLOR.

Type-M: 13.4"/.34m (W) x 9.45"/.24m(H) x 1.9"/.048m (D).

, PLASTIC EXTRUSION, BLACK COLOR, 3mm THICK.

D. CONTROL UNIT

1. MITSUBISHI PLC FX3U-32M, 16 INPUTS AND 16 OUTPUTS.

2. OUTPUT EXTENSION UNIT FX2N-8EYR-ES, 8 OUTPUTS.

E. CONTROL MODULES

1. PUSH BUTTON SWITCHE MODULE

2. MAGNETIC SWITCHE MODULE

3. RING LIGHT MODULE

4. TRAFFIC LIGHT MODULE

5. INDICATOR LAMP MODULE

F. MOTOR AND CONTROL ELEMENTS

1. AC INDUCTION MOTOR, 3 PIECES

2. LIMIT SWITCHES, 2 PIECES.

3. PROXIMITY SWITCH.

4. POWER RELAY

5. 3-POINT ASSEMBLY

6. MAGNET REED SWITCH.,4 PIECES.

7. PNEUMATIC CYLINDER.

8. PNEUMATIC DIRECTION VALVE, 2 PIECES.

9. ROTARY ENCODER MECHANISM

10. ELEVATOR .

G. PLATFORM

1. BASE PLATFORM

a. MATERIAL: STEEL PLATE.

b. SIZE: 500mm(W) x 400mm(D) x 23mm(H),

H. CONNECTION WIRES

1. EXTRUDED HERMAPHRODITIC BANANA PLUGS, STANDARD 1.6"/ 4mm DIAMETER.

2. TOTAL 30 WIRES OF LENGTH 7.9"/ .2M, 31.5"/ .8M AND 59"/ 1.5M.

I. MODULE BOARD STORAGE BOX (OPTIONAL)

SIZE: 14.6"/.37M(W) x 21.7"/.55M(H) x 9.8"/.25M(D)

J. EXPERIMENT MANUAL

ENGLISH, COPYRIGHTED IN USA.

K. POWER

AC 110V/220V +/- 10%, 60/50Hz.

(Click here for Detailed Specifications on PLC-1032LM)
